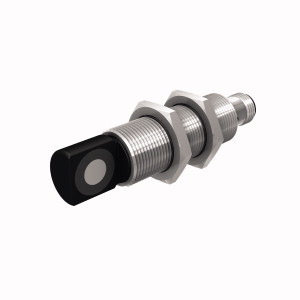

TURCK 1610087 / RU100L-M18MS-UN8X2-H1151 Ultrasonic Sensors
Ultrasonic Sensor, Retroreflective Sensor.
Overview
Features
- Operating Distance: 100 cm
- Design Principle: Retroreflective
- Housing Design: 18 mm barrel, side sensing transducer
- Output Function: 1 X NPN output
- Teach Button: Without
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 5
- Wiring Configuration: Standard wiring
- IO-Link: Not available with analog variants
Description
Ultrasonic Sensor, Retroreflective Sensor, Max. range 1000 mm, Rectangular transducer front, Cylindrical housing M18, potted, Connection via M12 x 1 male, Temperature compensation, Teach-in range: 15…98 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±16 °, 1 x switching output, NPN, Configurable via Teach-In, Parameterizable NO/NC
