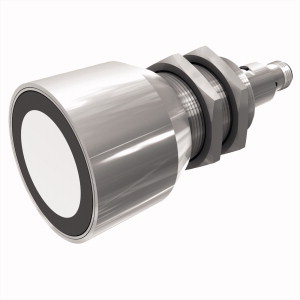

TURCK 1610075 / RU600U-EM30E-LIU2PN8X2T-H1151/3GD Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 600 cm
- Design Principle: Retroreflective programmable

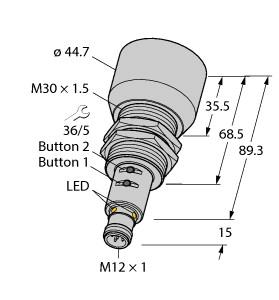

- Housing Design: 30 mm barrel, front sensing transducer
- Output Function: 2X PNP/NPN or Programmable 4 to 20 mA/0 to 10 V & 1x PNP/NPN output
- Teach Button: With teach button
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 5
- Wiring Configuration: Standard wiring
- IO-Link: IO Link V1.1
- ATEX Certification: II 3G Ex nA nC IIC T6 Gc II 3D Ex tc IIIC T70°C Dc
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 6000 mm, Smooth sonic transducer face, Cylindrical housing M30, potted, Connection via M12 x 1 male, Measuring range adjustable via teach button/Easy-Teach, Temperature compensation, Blind zone: 60 cm, Range: 600 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±15 °, 1 × switching output, PNP/NPN, 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO-link, ATEX II 3 G approval, Gases and vapors, Group IIC, Zone 2, Dust, Group IIIC, Zone 22, When used in hazardous areas, the special conditions of the approval must be observed, SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable
