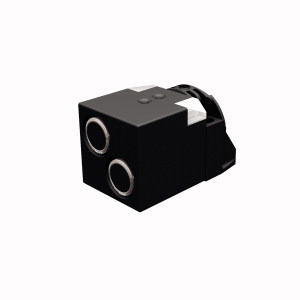

TURCK 1610057 / RU200-CK40-2UN8X2T-H1151 Ultrasonic Sensors

Ultrasonic Sensor, Diffuse Mode Sensor.

$394.40
Part Numbers
  • RU200-CK40-2UN8X2T-H1151
  • 1610057
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Operating Distance: 200 cm
  • Design Principle: Retroreflective programmable, legacy RU model
  • Housing Design: 67 x 40 x 40 mm rectangular housing, 5-way rotatable sensing head, M12 x 1 male connection
  • Output Function: 2x NPN output
  • Teach Button: With teach button
  • Connectorized Sensor: Eurofast connector, metal or plastic, male
  • Connector to Sensor Transition: Straight
  • Number of Connector Pins: 5
  • Wiring Configuration: Standard wiring
  • Special Options: None
View other configurations.
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 2000 mm, Separate transducers for transmitter and receiver, Rectangular housing 40 x 40 mm, Connection via M12 x 1 male, Teach range adjustable via button, Blind zone: 5 cm, Range: 200 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±60 °, 2 x switching outputs, NPN, NO/NC programmable
