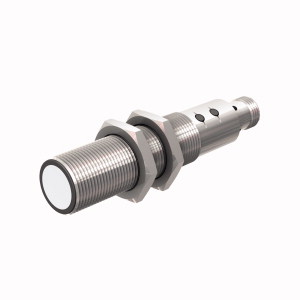

TURCK 1610024 / RU40U-M18E-LIU2PN8X2T-H1151 Ultrasonic Sensors
Ultrasonic Sensor, Diffuse Mode Sensor.
Overview
Features
- Operating Distance: 40 cm
- Design Principle: Proximity/diffuse
- Housing Design: 18 mm barrel, front sensing transducer
- Output Function: 2X PNP/NPN or Programmable 4 to 20 mA/0 to 10 V & 1x PNP/NPN output
- Teach Button: With teach button
- Connectorized Sensor: Eurofast connector, metal or plastic, male
- Connector to Sensor Transition: Straight
- Number of Connector Pins: 5
- Wiring Configuration: Standard wiring
- IO-Link: Not available with analog variants
Description
Ultrasonic Sensor, Diffuse Mode Sensor, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Teach range adjustable via pushbutton or adapter, Temperature compensation, Blind zone: 2.5 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, 1 × switching output, PNP/NPN, 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO-link
