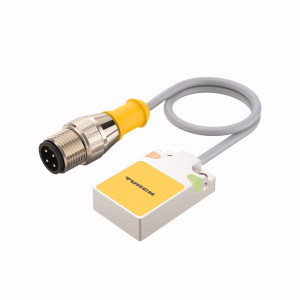

TURCK 1608981 / BI5U-Q08-AP6X2-0.3-RS4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$151.70

Part Numbers

BI5U-Q08-AP6X2-0.3-RS4T
1608981

Manufactured

By TURCK

Availability

Usually ships in 2-3 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 5 mm
Sensing Characteristics: Uprox sensor
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 08 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 5 mm, Cable length (L) 0.3 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
