TURCK 1608979 / BI50U-Q80-RP6X2-H1143/S1751 Inductive Sensors

Inductive Sensor, With Extended Switching Distance, With FM Approval.

$294.10
Part Numbers
  • BI50U-Q80-RP6X2-H1143/S1751
  • 1608979
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Material Modifier: Without
  • Housing Style: Rectangular style, metal or plastic
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 80 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: normally closed (N.C.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

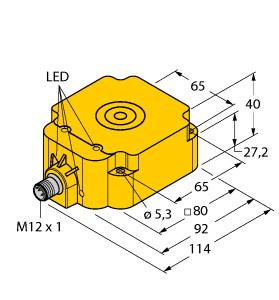

Inductive Sensor, With Extended Switching Distance, With FM Approval, Rated switching distance 50 mm, Flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, DC 3-wire, 10…30 VDC, NC contact, PNP output, M12 x 1 male connector
