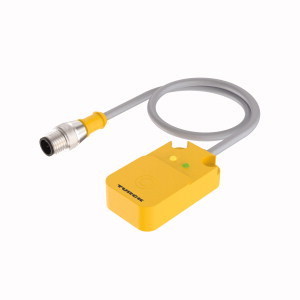

TURCK 1608783 / BI10-Q14-AP6X2-0.5-RS4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$128.30

Part Numbers

BI10-Q14-AP6X2-0.5-RS4T
1608783

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 10 mm
Sensing Characteristics: Standard
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 14 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

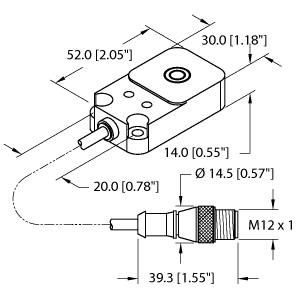

Inductive Sensor, Operating voltage 10…30 VDC, Rated switching distance 10 mm, Flush, Cable length (L) 0.5 m, Rectangular, height 14 mm, Active face on top, Plastic, PBT‐GF30‐V0, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
