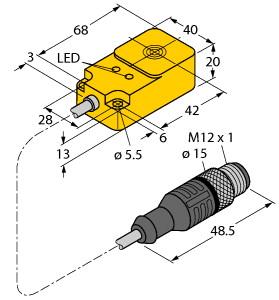

TURCK 1608690 / BI15U-Q20-VP6X2-0.2-RS4.4T Inductive Sensors

Inductive Sensor.

Available in other configurations.

$141.90

Part Numbers

BI15U-Q20-VP6X2-0.2-RS4.4T
1608690

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 1.5 mm
Sensing Characteristics: Uprox sensor
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 20 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 15 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 20 mm, Active face on top, Plastic, PBT-GF30-V0, Factor 1 for all metals, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, Cable with male end M12 x 1
