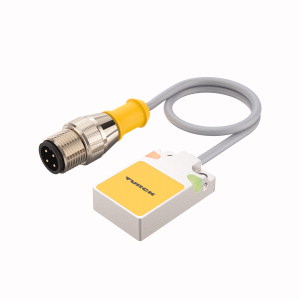

TURCK 1601679 / BI7-Q08-AP6X2-0.5-RSE 4T-P7X2/S1764 Inductive Sensors

Inductive Sensor, With Weldguard® coating and Viton/Fiberglass sleeving.

$245.40
Part Numbers
  • BI7-Q08-AP6X2-0.5-RSE 4T-P7X2/S1764
  • 1601679
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 7 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 08 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, With Weldguard® coating and Viton/Fiberglass sleeving, Rated switching distance 7 mm, Cable length (L) 0.5 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M12 x 1
