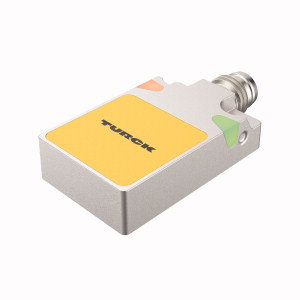

TURCK 1600902 / BI7-Q08-VP6X2-V1141 Inductive Sensors
Inductive Sensor, With Increased Switching Distance.
Overview
Features
- Mounting: Embeddable
- Principle of Operation: Inductive
- Operating Distance: 7 mm
- Sensing Characteristics: Standard
- Housing Style: Rectangular style, metal or plastic
- Housing Diameter or Height: 08 mm
- Secondary Housing Modifier: Without/Not applicable
- Output Function: Complementary outputs: one N.O., one N.C.
- Output: PNP transistor (current sourcing)
- Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
- Number of LEDS: 2
Description
Inductive Sensor, With Increased Switching Distance, Rated switching distance 7 mm, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, Large sensing range, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, Male connector M8 × 1/Ø 8 mm
