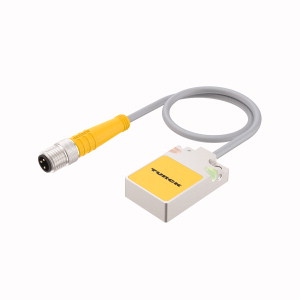

TURCK 1600882 / BI5-Q08-AP6X2-0.2-PSG3M/S34 Inductive Sensors

Inductive Sensor, Resistant to Magnetic Fields.

$203.00
Part Numbers
  • BI5-Q08-AP6X2-0.2-PSG3M/S34
  • 1600882
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 5 mm
  • Sensing Characteristics: Standard
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 08 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, Resistant to Magnetic Fields, Rated switching distance 5 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, , DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end M8 x 1
