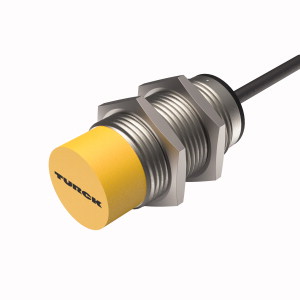

TURCK 1584028 / NI20-EM30-RP45XLD/S100 Inductive Sensors
Inductive Sensor, For Use in Vehicle Board Nets.
Overview
Features
- Mounting: Non-embeddable
- Principle of Operation: Inductive
- Operating Distance: 20 mm
- Sensing Characteristics: Standard
- Housing Material Modifier: Stainless steel
- Housing Style: Barrel, partial threading, chrome plated brass
- Primary Barrel Modifier: Standard
- Housing Diameter or Height: 30 mm
- Secondary Barrel Modifier: Without/Not applicable
- Output Function: normally closed (N.C.)
- Output: PNP transistor (current sourcing)
- Voltage Range: 8.4 to 65 VDC
- Number of LEDS: 1
Description
Inductive Sensor, For Use in Vehicle Board Nets, Rated switching distance 20 mm, Cable length (L) 2 m, Non-flush, M30 × 1.5 threaded tube, Stainless steel, 1.4301, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2, Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature change, Laser engraved label, permanently legible, DC 3-wire, 8.4…65 VDC, NC contact, PNP output, Cable connection
