TURCK 1579800 / BI40-CP80-VN4X2/S10 Inductive Sensors

Inductive Sensor.

$398.00
Part Numbers
  • BI40-CP80-VN4X2/S10
  • 1579800
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 40 mm
  • Sensing Characteristics: Standard
  • Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
  • Housing Diameter or Height: 80 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Complementary outputs: one N.O., one N.C.
  • Output: NPN transistor (current sinking)
  • Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

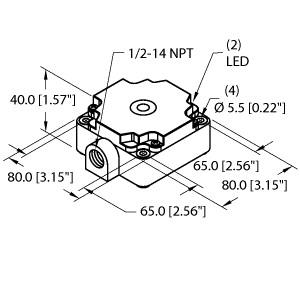

Inductive Sensor, Rated switching distance 40 mm, Flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Thread, 1/2-14 NPT, DC 4-wire, 10…65 VDC, Changeover contact, NPN output, Terminal chamber
