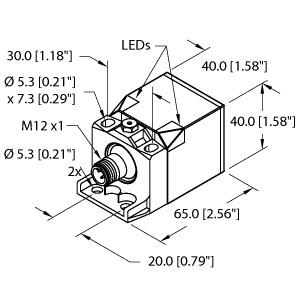

TURCK 1568890 / NI25U-CK40-VP4X2-H1141 W/BS 2.1 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$216.80

Part Numbers

NI25U-CK40-VP4X2-H1141 W/BS 2.1
1568890

Manufactured

By TURCK

Availability

Usually ships in 7-10 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 25 mm
Sensing Characteristics: Uprox sensor
Housing Style: Stubby model limit switch, short plastic housing, connector
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 25 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, M12 x 1 male connector
