TURCK 1564892 / BI25-G47SR-VP4X2-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$489.20

Part Numbers

BI25-G47SR-VP4X2-H1141
1564892

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2.5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 4.7 mm
Secondary Barrel Modifier: Straight terminal chamber
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

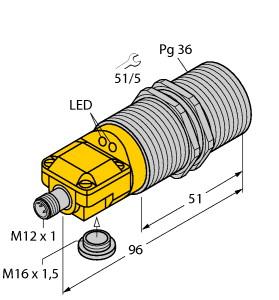

Inductive Sensor, Rated switching distance 25 mm, Flush, Threaded barrel, PG36, Chrome-plated brass, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, M12 x 1 male connector
