TURCK 1562007 / BI50U-Q80-VP6X2-H1141 Inductive Sensors

Inductive Sensor, With Extended Switching Distance.

$315.00
Part Numbers
  • BI50U-Q80-VP6X2-H1141
  • 1562007
Manufactured
Availability
  • Usually ships in 5-8 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Uprox sensor
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 80 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Complementary outputs: one N.O., one N.C.
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

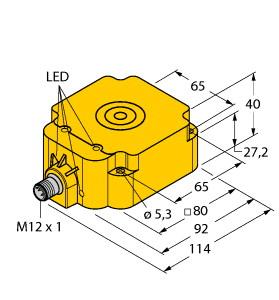

Inductive Sensor, With Extended Switching Distance, Operating voltage 10…30 VDC, Rated switching distance 50 mm, Flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, Factor 1 for all metals, Increased switching distance, Protection class IP68, Resistant to magnetic fields, DC 4-wire, 10…30 VDC, Changeover contact, PNP output, M12 x 1 male connector
