TURCK 1535547 / NI25-CP40-LIU/S10 Inductive Sensors

Inductive Sensor, With Analog Output.

Available in other configurations.

TURCK 1535547 / NI25-CP40-LIU/S10 Inductive Sensors — TURCK-NI25-CP40-LIU/S10

$501.70

Part Numbers

NI25-CP40-LIU/S10
1535547

Manufactured

By TURCK

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 25 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor

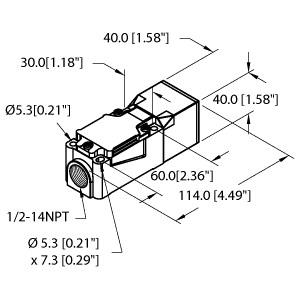

Housing Diameter or Height: 40 mm
Secondary Barrel Modifier: Without/Not applicable
Output: Linear analog output (current and voltage, 15-30 VDC)
Number of LEDS: None

View other configurations.

Inductive Sensor, With Analog Output, Measuring range 5 mm, Max. measuring range 25 mm, Rated switching distance 25 mm, Non-flush, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBT-GF30-VO, High-luminance corner LEDs, Optimum view of operating voltage and switching state from any position, Thread, 1/2-14 NPT, 4‐wire, 15…30 VDC, Analog output, 0…10 V and 0…20 mA, Terminal chamber
