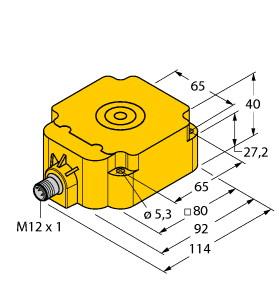

TURCK 1535545 / NI50-Q80-LIU-H1141 Inductive Sensors

Inductive Sensor, With Analog Output.

$668.40
Part Numbers
  • NI50-Q80-LIU-H1141
  • 1535545
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 80 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output: Linear analog output (current and voltage, 15-30 VDC)
  • Number of LEDS: None
View other configurations.
Inductive Sensor, With Analog Output, Measuring range 10 mm, Max. measuring range 50 mm, Non-flush, Rectangular, height 40 mm, Active face on top, Plastic, PBT‐GF30‐V0, 4‐wire, 15…30 VDC, Analog output, 0…10 V and 0…20 mA, M12 x 1 male connector
