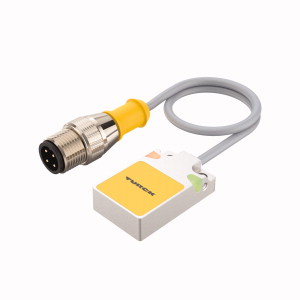

TURCK 1534692 / BI7-Q08-LIU-0.2-RS4.4T Inductive Sensors

Inductive Sensor, With Analog Output.

$270.80
Part Numbers
  • BI7-Q08-LIU-0.2-RS4.4T
  • 1534692
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 7 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Rectangular style, metal or plastic
  • Housing Diameter or Height: 08 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output: Linear analog output (current and voltage, 15-30 VDC)
  • Number of LEDS: None
View other configurations.
Inductive Sensor, With Analog Output, Measuring range 1 mm, Max. measuring range 4 mm, Cable length (L) 0.2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel-plated, 4-wire, 15…30 VDC, Analog output, 0…10 V and 0…20 mA, Cable with connector, M12 × 1
