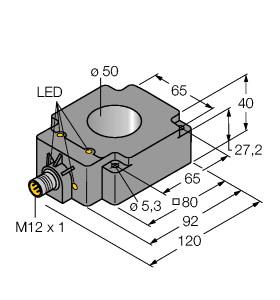

TURCK 1407530 / BI50R-Q80-AP6X2-H1141 Inductive Sensors

Inductive Sensor, Ring Sensor.

$599.20
Part Numbers
  • BI50R-Q80-AP6X2-H1141
  • 1407530
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Ring sensor
  • Housing Material Modifier: Without
  • Housing Style: Rectangular style, metal or plastic
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 80 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Normally open (N.O.)
  • Output: PNP transistor (current sourcing)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, Ring Sensor, , Rectangular, height 40 mm, Plastic, PBT‐GF30‐V0, Static output behaviour, Output pulse length min. 100 ms, DC 3-wire, 10…30 VDC, NO contact, PNP output, M12 x 1 male connector
