TURCK 1341695 / NI50-CP80-FZ3X2-B2131 Inductive Sensors

Inductive Sensor, With Increased Switching Distance.

$543.50
Part Numbers
  • NI50-CP80-FZ3X2-B2131
  • 1341695
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 50 mm
  • Sensing Characteristics: Standard
  • Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
  • Housing Diameter or Height: 80 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Connection programmable (N.O. or N.C)
  • Output: 2-wire AC or 2-wire AC/DC
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

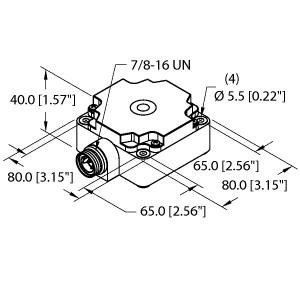

Inductive Sensor, With Increased Switching Distance, Rated switching distance 50 mm, Non-flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Large sensing range, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 7/8 connector, "
