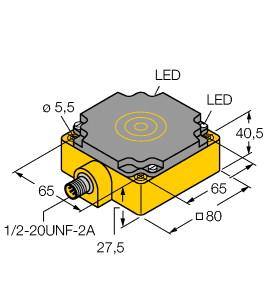

TURCK 1340491 / BI40-CP80-FZ3X2-B3131 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$643.40

Part Numbers

BI40-CP80-FZ3X2-B3131
1340491

Manufactured

By TURCK

Availability

Usually ships in 8-12 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 40 mm
Sensing Characteristics: Standard
Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
Housing Diameter or Height: 80 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 40 mm, Flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 1/2 male connector, "
