TURCK 1335090 / BI15-CK40-AZ3X2/S531 W/BS 2.1 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$239.10

Part Numbers

BI15-CK40-AZ3X2/S531 W/BS 2.1
1335090

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 1.5 mm
Sensing Characteristics: Standard

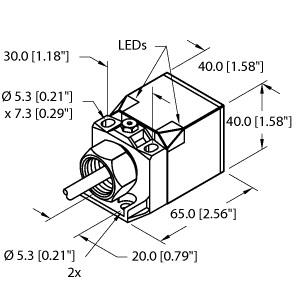

Housing Style: Stubby model limit switch, short plastic housing, connector
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 15 mm, Cable length (L) 2 m, Flush, Rectangular, height 40 mm, Variable orientation of active face in 5 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, Terminal chamber
