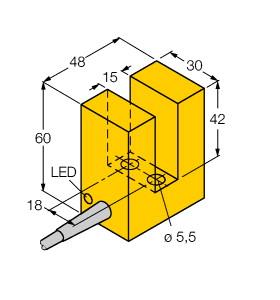

TURCK 1007601 / SI15-K30-Y1X Inductive Sensors

Inductive Sensor, Slot-type.

$168.50
Part Numbers
  • SI15-K30-Y1X
  • 1007601
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Slot
  • Principle of Operation: Inductive
  • Operating Distance: 1.5 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Slot sensor, plastic housing
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 30 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: NAMUR output, requires switching amplifier/ATEX approved
  • Output: 2-wire DC
  • Voltage Range: 8.2 VDC
  • Number of LEDS: 1
View other configurations.
Inductive Sensor, Slot-type, Cable length (L) 2 m, Slot sensor, height 30 mm, Plastic, PBT‐GF30‐V0, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
