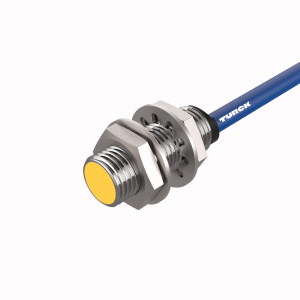

TURCK 1005497 / BI2-G12-Y0 7M Inductive Sensors

Inductive Sensor.

$110.00
Part Numbers
  • BI2-G12-Y0 7M
  • 1005497
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 2 mm
  • Sensing Characteristics: Standard
  • Housing Material Modifier: Without
  • Housing Style: Barrel, full threading, generally chrome plated brass
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 12 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: NAMUR output, requires switching amplifier
  • Output: 2-wire DC
  • Voltage Range: 8.2 VDC
  • Number of LEDS: None
View other configurations.
Inductive Sensor, Rated switching distance 2 mm, Cable length (L) 2 m, Flush, M12 × 1 threaded barrel, Chrome-plated brass, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection
