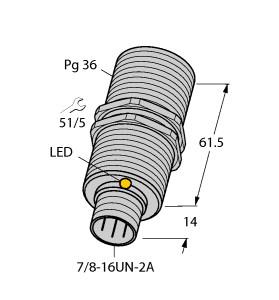

TURCK 45903 / BI25-G47-VN4X-B2141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$407.80

Part Numbers

BI25-G47-VN4X-B2141
45903

Manufactured

By TURCK

Availability

Usually ships in 7-10 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 2.5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 4.7 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Complementary outputs: one N.O., one N.C.
Output: NPN transistor (current sinking)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 25 mm, Flush, Threaded barrel, PG36, Chrome-plated brass, DC 4-wire, 10…30 VDC, Changeover contact, NPN output, 7/8" male connector
