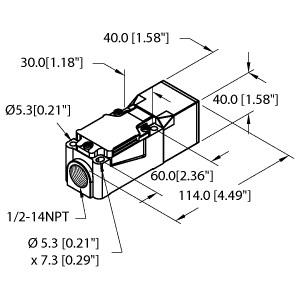

TURCK 42266 / BI15-CP40-FDZ30X2/S10-S97 Inductive Sensors

Inductive Sensor, With Extended Temperature Range.

$555.90
Part Numbers
  • BI15-CP40-FDZ30X2/S10-S97
  • 42266
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 1.5 mm
  • Sensing Characteristics: Standard
  • Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
  • Housing Diameter or Height: 40 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Connection programmable (N.O. or N.C)
  • Output: 2-wire AC/DC, (power MOSFET output)
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC 400 mA, latched short circuit and overload protection
  • Number of LEDS: 2
View other configurations.
Inductive Sensor, With Extended Temperature Range, Rated switching distance 15 mm, Flush, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBT‐GF30‐V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, Temperatures up to -40 °C, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC/NO programmable, Terminal chamber
