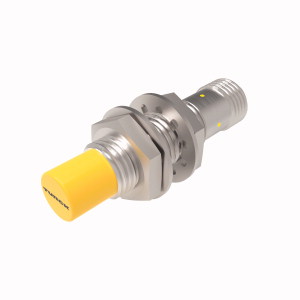

TURCK 40103 / NI5-M12-Y1X-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$126.40

Part Numbers

NI5-M12-Y1X-H1141
40103

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 5 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Without/Not applicable
Housing Diameter or Height: 12 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: NAMUR output, requires switching amplifier/ATEX approved
Output: 2-wire DC
Voltage Range: 8.2 VDC
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 5 mm, Non-flush, M12 × 1 threaded barrel, Chrome-plated brass, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), M12 x 1 male connector, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
