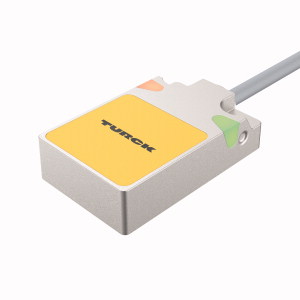

TURCK 26201 / BC5-Q08-AN6X2/S250 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$177.30

Part Numbers

BC5-Q08-AN6X2/S250
26201

Manufactured

By TURCK

Availability

Usually ships in 1-2 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 5 mm
Housing Style: Rectangular style, metal or plastic
Housing Diameter or Height: 08 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Normally open (N.O.)
Output: NPN transistor (current sinking)
Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 5 mm, Cable length (L) 2 m, Flush, Rectangular, height 8 mm, Active face on top, Metal, Zamak, nickel plated, Fixed settings, DC 3-wire, 10…30 VDC, NO contact, NPN output, Cable connection
