TURCK 25157 / BC20-CP40-VN4X2/S10 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$436.20

Part Numbers

BC20-CP40-VN4X2/S10
25157

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 20 mm

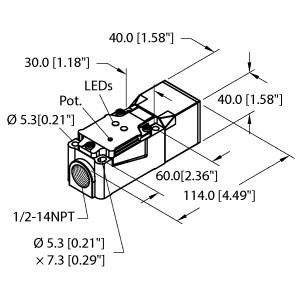

Housing Style: Rectangular style, plastic (PBT-GF30-V0)
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Complementary outputs: one N.O., one N.C.
Output: NPN transistor (current sinking)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 20 mm, Flush, Rectangular, height 40 mm, 9 selectable sensor head positions, Plastic, PBT‐GF30‐V0, Fine adjustment via potentiometer, DC 4-wire, 10…65 VDC, Complementary contact, NPN output, Terminal chamber
