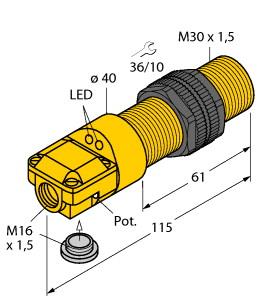

TURCK 25050 / BC10-P30SR-VP4X2 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$436.20

Part Numbers

BC10-P30SR-VP4X2
25050

Manufactured

By TURCK

Availability

Usually ships in 10-16 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 10 mm
Housing Style: Barrel, plastic, full threading
Housing Diameter or Height: 30 mm
Secondary Housing Modifier: Straight terminal chamber
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 15 mm, Flush, M30 × 1.5 threaded barrel, Plastic, ABS, Fine adjustment via potentiometer, DC 4-wire, 10…65 VDC, Complementary contact, PNP output, Terminal chamber
