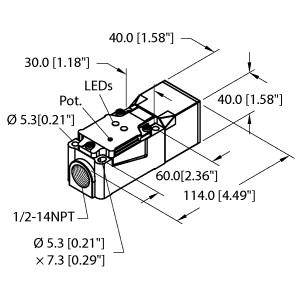

TURCK 23115 / BC20-CP40-FZ3X2/S10 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$457.20

Part Numbers

BC20-CP40-FZ3X2/S10
23115

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 20 mm
Housing Style: Rectangular style, plastic (PBT-GF30-V0)
Housing Diameter or Height: 40 mm
Secondary Housing Modifier: Without/Not applicable
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 20 mm, Flush, Rectangular, height 40 mm, 9 selectable sensor head positions, Plastic, PBT‐GF30‐V0, Fine adjustment via potentiometer, AC 2-wire, 20…250 VAC, Programmable connection (NC/NO), Terminal chamber
