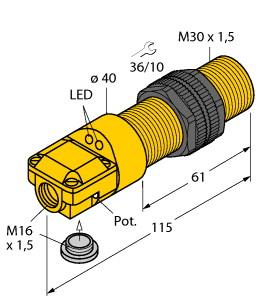

TURCK 23104 / BC10-P30SR-FZ3X2 Capacitive Sensors

Capacitive Sensor.

Available in other configurations.

$471.50

Part Numbers

BC10-P30SR-FZ3X2
23104

Manufactured

By TURCK

Availability

Usually ships in 0-7 business days

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Capacitive (IP67)
Operating Distance: 10 mm
Housing Style: Barrel, plastic, full threading
Housing Diameter or Height: 30 mm
Secondary Housing Modifier: Straight terminal chamber
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

Capacitive Sensor, Rated switching distance 15 mm, Flush, M30 × 1.5 threaded barrel, Plastic, ABS, Fine adjustment via potentiometer, AC 2-wire, 20…250 VAC, Programmable connection (NC/NO), Terminal chamber
