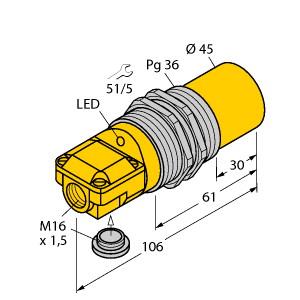

TURCK 15650 / NI40-G47SR-VP4X2 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$489.40

Part Numbers

NI40-G47SR-VP4X2
15650

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 40 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 4.7 mm
Secondary Barrel Modifier: Straight terminal chamber
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 2

View other configurations.

Inductive Sensor, Rated switching distance 40 mm, Non-flush, 2 cable entries (axial, radial), Threaded barrel, Pg36, Chrome-plated brass, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, Terminal chamber
