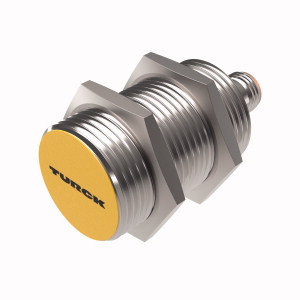

TURCK 15616 / BI10-M30-VP4X-H1141 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$160.50

Part Numbers

BI10-M30-VP4X-H1141
15616

Manufactured

By TURCK

Availability

Usually ships in 3-4 weeks

Product Specs

Features

Mounting: Embeddable
Principle of Operation: Inductive
Operating Distance: 10 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, partial threading, chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 30 mm
Secondary Barrel Modifier: Without/Not applicable
Output Function: Complementary outputs: one N.O., one N.C.
Output: PNP transistor (current sourcing)
Voltage Range: 10 to 65 VDC, polarity protected, pulsed short circuit and overload protection
Number of LEDS: 1

View other configurations.

Inductive Sensor, Rated switching distance 10 mm, Flush, M30 × 1.5 threaded tube, Chrome-plated brass, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, M12 x 1 male connector
