TURCK 14043 / BI20R-W30-DAN6X-H1141 Inductive Sensors

Inductive Sensor, Ring Sensor.

$686.50
Part Numbers
  • BI20R-W30-DAN6X-H1141
  • 14043
Manufactured
Availability
  • Usually ships in 3-4 weeks
Product Specs

Features

  • Mounting: Embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 20 mm
  • Sensing Characteristics: Ring sensor
  • Housing Material Modifier: Without
  • Housing Style: Small plastic housing, dynamic output
  • Primary Barrel Modifier: Without/Not applicable
  • Housing Diameter or Height: 30 mm
  • Secondary Barrel Modifier: Without/Not applicable
  • Output Function: Dynamic output (ring sensor), normally open
  • Output: NPN transistor (current sinking)
  • Voltage Range: 10 to 30 VDC, polarity protected, pulsed short circuit and overload protection
  • Number of LEDS: 1
View other configurations.

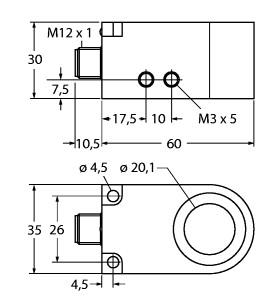

Inductive Sensor, Ring Sensor, , Rectangular, height 30 mm, Plastic, PA12‐GF30, Pulse duration 100 ms, Sensitivity adjusted via potentiometer, DC 3-wire, 10…30 VDC, Dynamic output behaviour, NO contact, NPN output, M12 x 1 male connector
