TURCK 13428 / NI40-G47SR-FZ3X2 Inductive Sensors

Inductive Sensor.

Available in other configurations.

$491.40

Part Numbers

NI40-G47SR-FZ3X2
13428

Manufactured

By TURCK

Availability

Usually ships in 5-8 weeks

Product Specs

Features

Mounting: Non-embeddable
Principle of Operation: Inductive
Operating Distance: 40 mm
Sensing Characteristics: Standard
Housing Material Modifier: Without
Housing Style: Barrel, full threading, generally chrome plated brass
Primary Barrel Modifier: Standard
Housing Diameter or Height: 4.7 mm
Secondary Barrel Modifier: Straight terminal chamber
Output Function: Connection programmable (N.O. or N.C)
Output: 2-wire AC or 2-wire AC/DC
Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
Number of LEDS: 2

View other configurations.

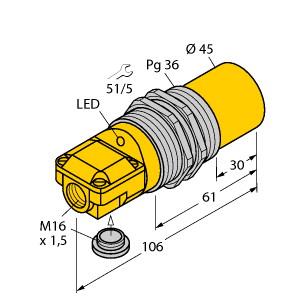

Inductive Sensor, Rated switching distance 40 mm, Non-flush, 2 cable entries (axial, radial), Threaded barrel, Pg36, Chrome-plated brass, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC/NO programmable, Terminal chamber
