TURCK 13415 / NI40-CP80-FZ3X2/S10 Inductive Sensors

Inductive Sensor.

$520.30
Part Numbers
  • NI40-CP80-FZ3X2/S10
  • 13415
Manufactured
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Mounting: Non-embeddable
  • Principle of Operation: Inductive
  • Operating Distance: 40 mm
  • Sensing Characteristics: Standard
  • Housing Style: Combiprox model limit switch, plastic housing, terminal chamber base with removable sensor
  • Housing Diameter or Height: 80 mm
  • Secondary Housing Modifier: Without/Not applicable
  • Output Function: Connection programmable (N.O. or N.C)
  • Output: 2-wire AC or 2-wire AC/DC
  • Voltage Range: 20 to 250 VAC, 10 to 300 VDC, without short circuit and overload protection
  • Number of LEDS: 2
View other configurations.

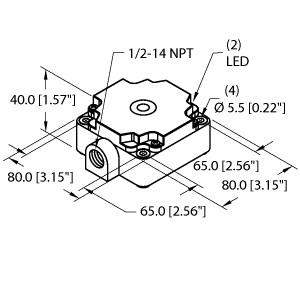

Inductive Sensor, Rated switching distance 40 mm, Non-flush, Rectangular, height 41 mm, Plastic, PBT‐GF30‐V0, Thread, 1/2-14 NPT, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NC/NO programmable, Terminal chamber
