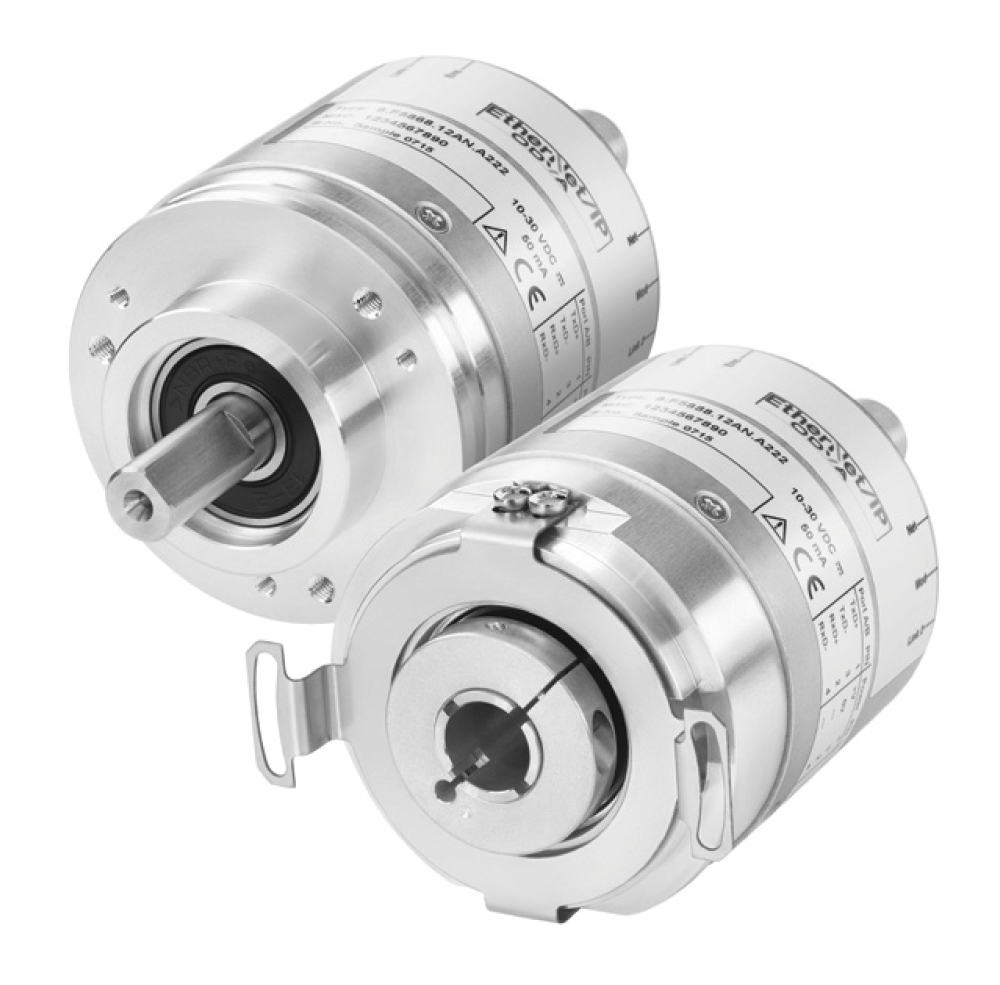

TURCK RS-107 / RS-108 Singleturn Series Absolute Encoder
Blind hollow or solid shaft singleturn absolute encoder with shaft sizes up to 15 mm designed for time sensitive applications. EtherNet/IP communication.
Overview
Features
- Design principle:
- Blind hollow shaft
- Solid shaft
- Overall diameter: Ø 58 mm
- Resolution: 18 bit default (19 bit scalable)
- Speed: 8000 rpm max
- Output: EthernNet/IP (with device level ring)
- Supply voltage: 10 to 30 VDC
- Operating temperature: -40 to 80°C (-40 to 176°F)
- Material:
- Housing: aluminum
- Flange: aluminum
- Shaft: stainless steel
- Short circuit protection
- Reverse polarity protection (10 to 30 VDC)
- Shock resistance: 250 g (2500 m/s2), 6 ms
- Vibration resistance: 10 g (100 m/s2), 55 to 2000 Hz
- Protective rating:
- Housing: IP65
- Shaft:
- IP65
- IP67
- cULus certification
- RoHs compliant
Description
The TURCK RS-107 / RS-108 Singleturn Series Absolute Encoder is a highly accurate position sensing system with up to 19 bit resolution, EtherNet/IP functionality with device level ring. Adjustable parameters include: preset, count direction, resolution, unity of speed, IP address, number of revolutions, position, diagnosis, position limit, and warning messages. The overall Ø 58 mm design offers compatibility with solid (RS-107) and hollow (RS-108) shaft configurations up to 15 mm in diameter. The aluminum housing offers ingress protection up to IP65, with IP65 or IP67 rated stainless steel shaft configurations. Units come with a wide operating temperature range of -40 to 80°C, are magnetic field proof, with short circuit and reverse polarity protection. Integrated TURCK OptoASIC technology allows for fewer required points of connection and components, improving reliability.
