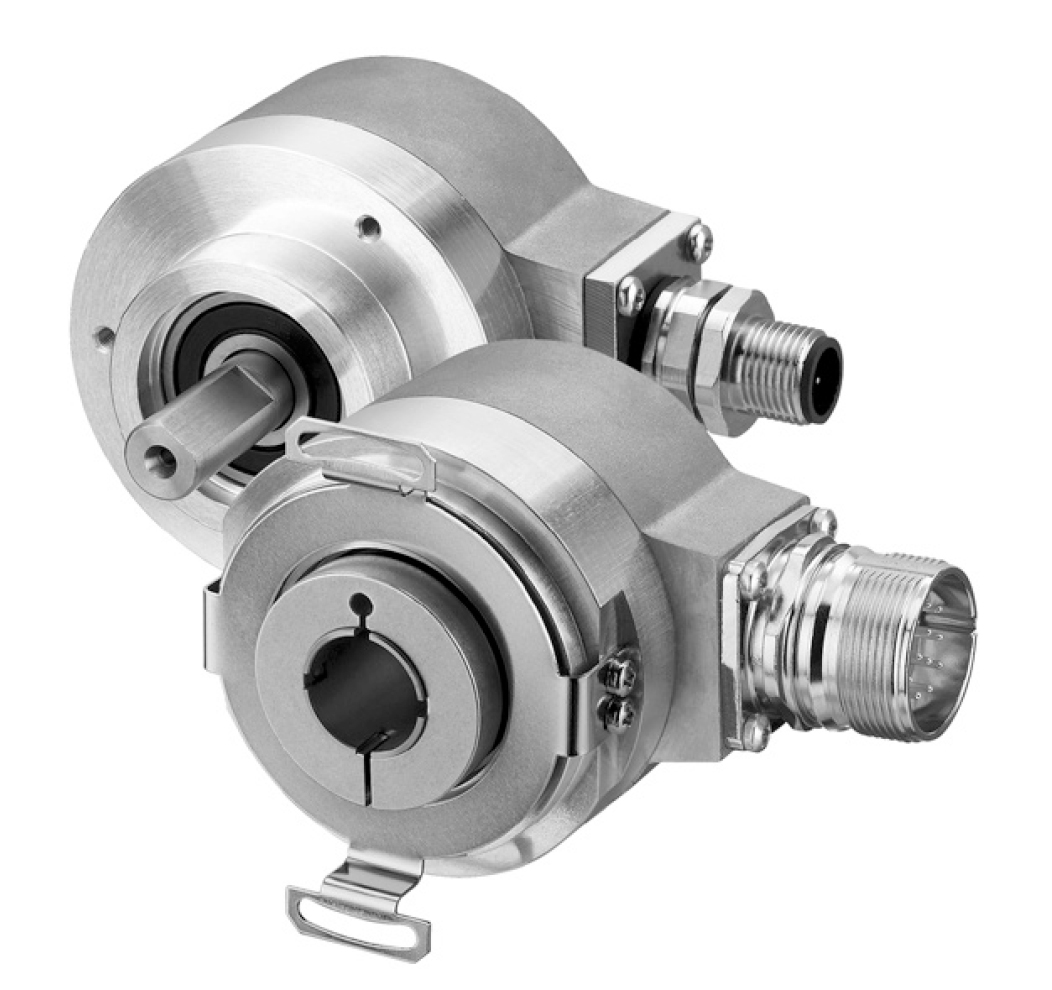

TURCK RS-24 / RS-31 Singleturn Series Absolute Encoder

Name: TURCK RS-24 / RS-31 Singleturn Series Absolute Encoder
Brand: TURCK
Price: 1129.7 USD
Availability: BackOrder

Hollow or solid shaft singleturn absolute encoder with shaft sizes up to 15 mm. SSI and SIN/COS outputs, up to 17 bit resolution. Wide operating temperature range.

Starting at $1,129.70

Manufactured

By TURCK

Availability

Call for availability

Product Specs

Features

Design principle:
- Hollow shaft
- Solid shaft
Overall diameter: Ø 58 mm
Resolution: up to 17 bit
Clock rate:
- SSI:
  - ≤ 14 bit 50 kHz to 2 MHz
  - ≥ 15 bit 50 to 125 kHz
Speed:
- Solid shaft: up to 12000 rpm max (IP65)
- Hollow shaft: up to 9000 rpm max (IP65)
Output:
- SSI
- SIN/COS
Supply voltage:
- 5 VDC max
- 10 to 30 VDC
Operating temperature: -40 to 90°C (-40 to 194°F)
Material:
- Housing: die-cast zinc
- Flange: aluminum
- Shaft: stainless steel
- Cable: PVC
Short circuit protection
Reverse polarity protection (10 to 30 VDC)
Shock resistance: 250 g (2500 m/s2), 6 ms
Vibration resistance: 10 g (100 m/s2), 55 to 2000 Hz
Protective rating:
- Housing: IP67
- Shaft:
  - IP65
  - IP67

The TURCK RS-24 / RS-31 Singleturn Series Absolute Encoder is a highly accurate position sensing system with up to 17 bit resolution, SSI interface (binary or gray), with a SinCos incremental output available with select variants. The overall Ø 58 mm design offers compatibility with solid (RS-24) and hollow (RS-31) shaft configurations up to 15 mm in diameter. A durable die cast housing offers ingress protection up to IP67, with a wide operating temperature range of -40 to 90°C. Units are magnetic field proof, with short circuit protection, and reverse polarity protection with 10 to 30 VDC rated variants. Integrated TURCK OptoASIC technology allows for fewer required points of connection and components, improving reliability. Status LEDs and set keys are available.
