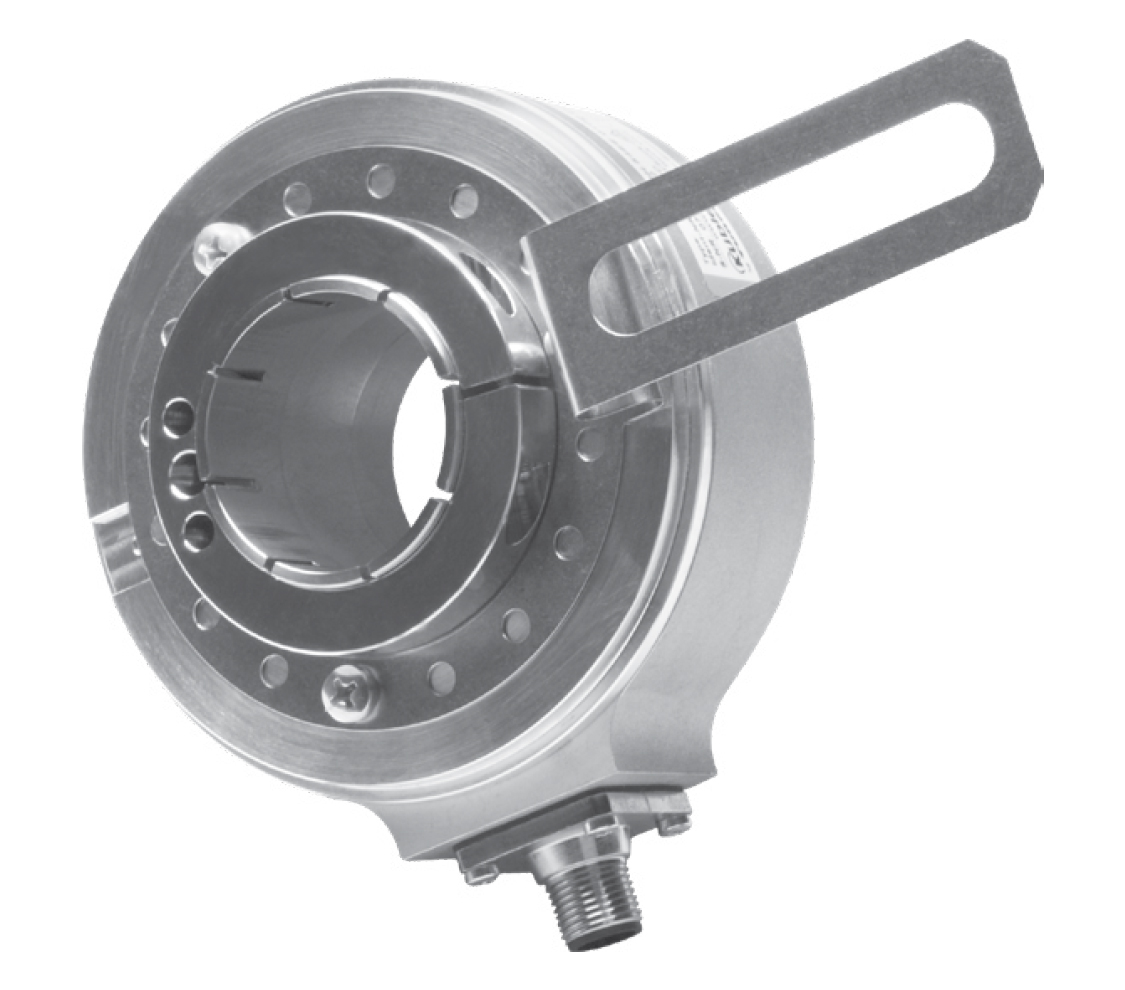

TURCK RI-43 Large Bore Series Incremental Encoder

Rugged hollow shaft incremental encoder for large bore sizes. RS422, Push-Pull and SIN/COS outputs, with 50 to 5000 ppr. Wide operating temperature range.

Starting at $724.50
This model has 85 variants.
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Design principle: hollow shaft
  • Overall diameter: Ø 100 mm
  • Pulse rate: 50 to 5000 ppr
  • Pulse frequency: 300 kHz max
  • Speed: 6000 rpm max
  • Output:
    • Push-Pull
    • Push-Pull w/ inverted signals
    • RS422 w/ inverted signals
    • SIN/COS
  • Supply voltage:
    • 5 VDC max
    • 5 to 30 VDC
    • 10 to 30 VDC
  • Operating temperature: -40 to 80°C (-40 to 176°F)
  • Material:
    • Housing: die-cast
    • Flange: aluminum
    • Shaft: stainless steel
  • Short circuit protection
  • Reverse polarity protection
  • Shock resistance: 200 g (2000 m/s2), 6 ms
  • Vibration resistance: 10 g (100 m/s2), 10 to 2000 Hz
  • Protective rating: IP65

The TURCK RI-43 Large Bore Series Incremental Encoder is a rugged position sensing system with an Ø 100 mm overall diameter, with hollow shaft diameters from 20 to 42 mm. Pulse rates are available from 50 to 5000 ppr, with 5 VDC, 5 to 30 VDC, and 10 to 30 VDC operating voltages, providing high scan rates alongside low power consumption. Output configurations include Push-Pull, RS422, and SIN/COS waves. The stainless steel shaft is rated for IP65 ingress protection. Units feature short-circuit protection, with reverse polarity protection available with select variants (consult product catalog for additional specifications). Operating temperatures range from -40 to 80°C. Isolation inserts (e.g., /N42), along with special output signal formatting and pin connector configurations available. See the configuration specific landing page for additional specifications if further clarity is needed.

Replacement Accessories

TURCK Encoder Series Torque Stop
TURCK Encoder Series Torque Stop

Torque stop for use with RI (incremental), RS (singleturn), and RM (multiturn) series Encoders.

Starting at $8.00
TURCK Encoder Series Torque Pin
TURCK Encoder Series Torque Pin

Torque pin for use with RI-12 and RI-43 (incremental) series encoders.

Starting at $16.70

Accessories

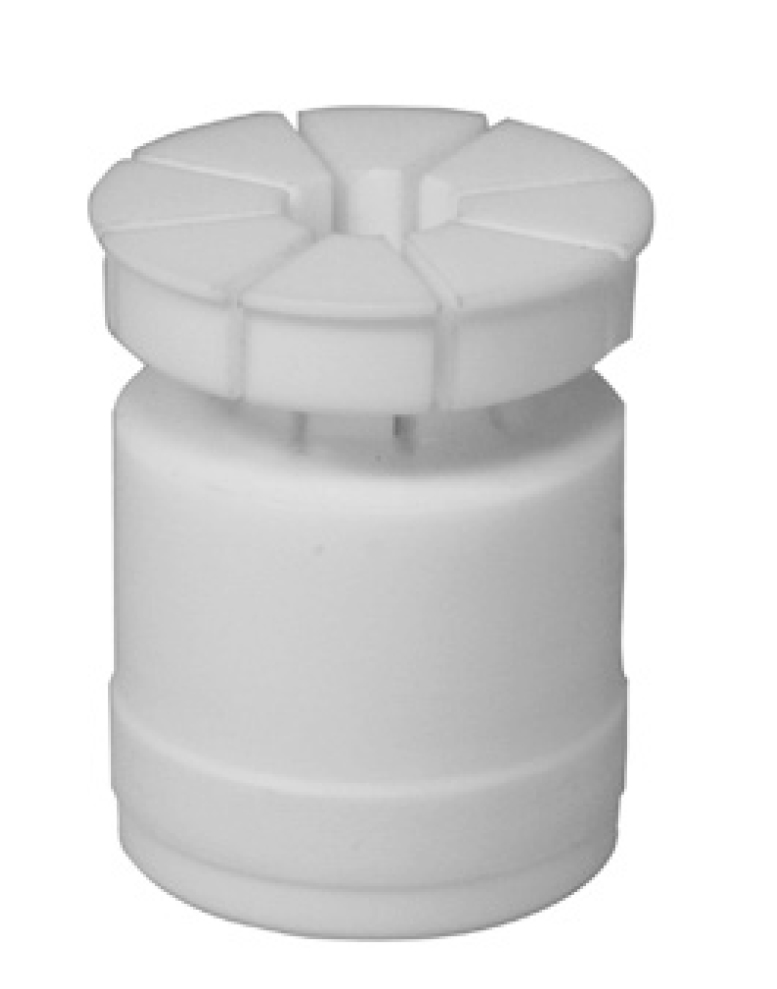

TURCK RI-43 Series Isolation Insert
TURCK RI-43 Series Isolation Insert

Inlay for hollow shaft encoders, thermal and electrical insulation. Reduces the diameter of the hollow shaft, 38 mm down to 12 mm.

Starting at $42.70
TURCK Encoder Series Tether Arm
TURCK Encoder Series Tether Arm

Tether arm for use with RI (incremental), RS (singleturn), and RM (multiturn) series Encoders.

Starting at $49.50
