TURCK RI-16 / RI-64 High Resolution Series Incremental Encoder
Compact solid or hollow shaft incremental encoder with high resolution, 10000 and 36000 ppr, magnetic field proof and wide operating temperature range.
Overview
Features
- Design principle:
- Solid shaft
- Hollow shaft
- Diameter: Ø 5 mm
- Pulse rate:
- 10000 ppr
- 36000 ppr
- Pulse frequency:
- RS422: 800 kHz max
- Push-Pull: 600 kHz mac
- Speed:
- RI-16: 12000 rpm max
- RI-64H: 6000 rpm max
- Output:
- Push-Pull w/ inverted signals
- RS422 w/ inverted signals
- Supply voltage:
- 5 VDC max
- 5 to 30 VDC
- 10 to 30 VDC
- Operating temperature:
- RI-16: -20 to 105°C (-4 to 221°F)
- RI-64H: -20 to 90°C (-4 to 194°F)
- Shaft material: stainless steel
- Short circuit protection
- Reverse polarity protection
- Shock resistance: 100 g (1000 m/s2), 6 ms
- Vibration resistance: 10 g (100 m/s2), 10 to 2000 Hz
- Protective rating:
- RI-16: IP65
- RI-64H: IP66
- RoHS compliant
- cULus certified
Description

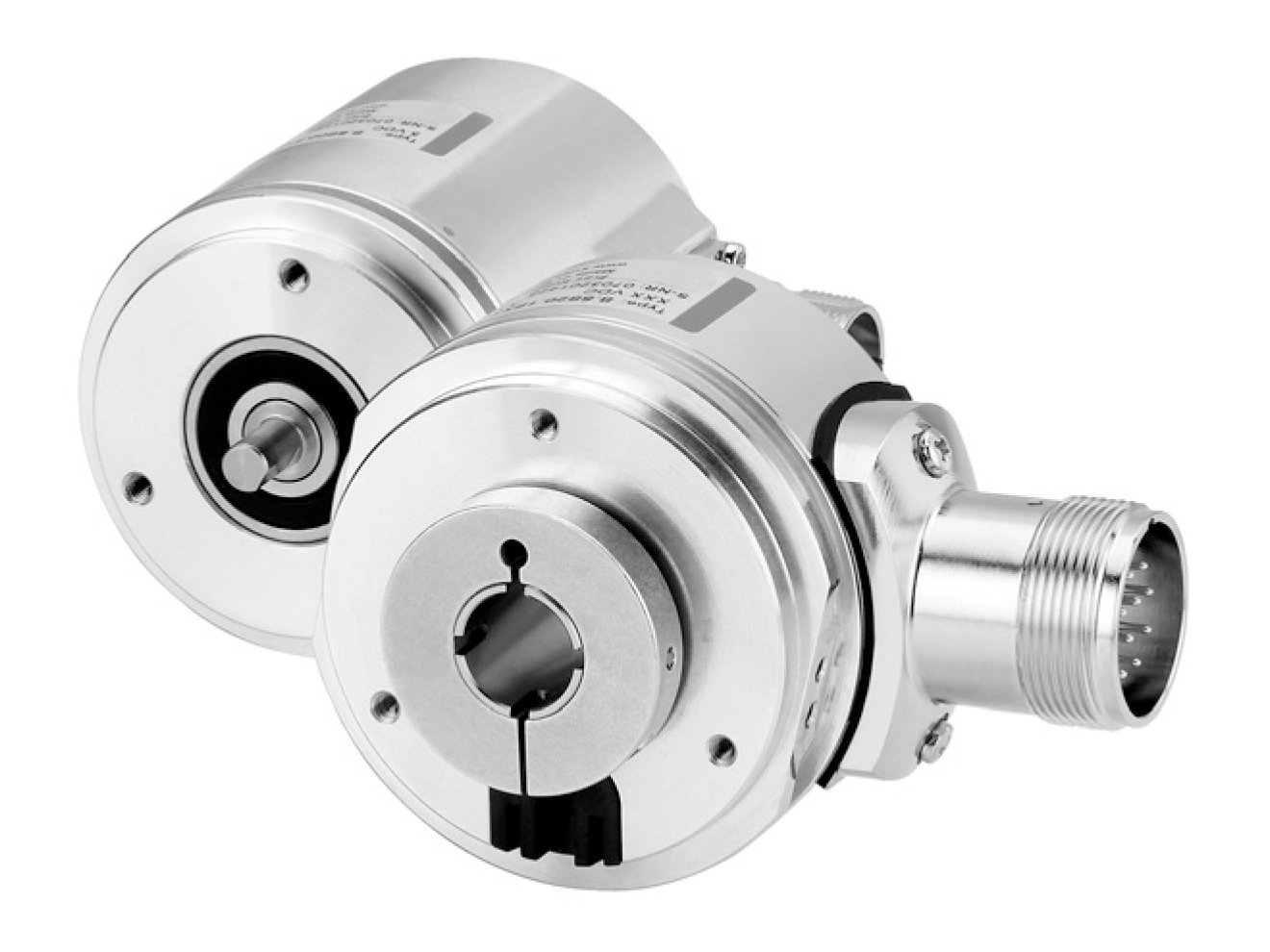

The TURCK RI-16 / RI-64 High Resolution Series Incremental Encoder is a 58 mm diameter position sensing system, with both solid (RI-16) and hollow shaft (RI-64) configurations for integration flexibility. Pulse rates are available in 10000 and 36000 ppr variants, with 5 VDC, 5 to 30 VDC, and 10 to 30 VDC operating voltages, providing high scan rates alongside low power consumption. The stainless steel shaft features up to IP66 rated ingress protection. All units are magnetic field proof, with short-circuit and reverse polarity protection. Operating temperatures range from -20 to 105°C (RI-16 variants).
