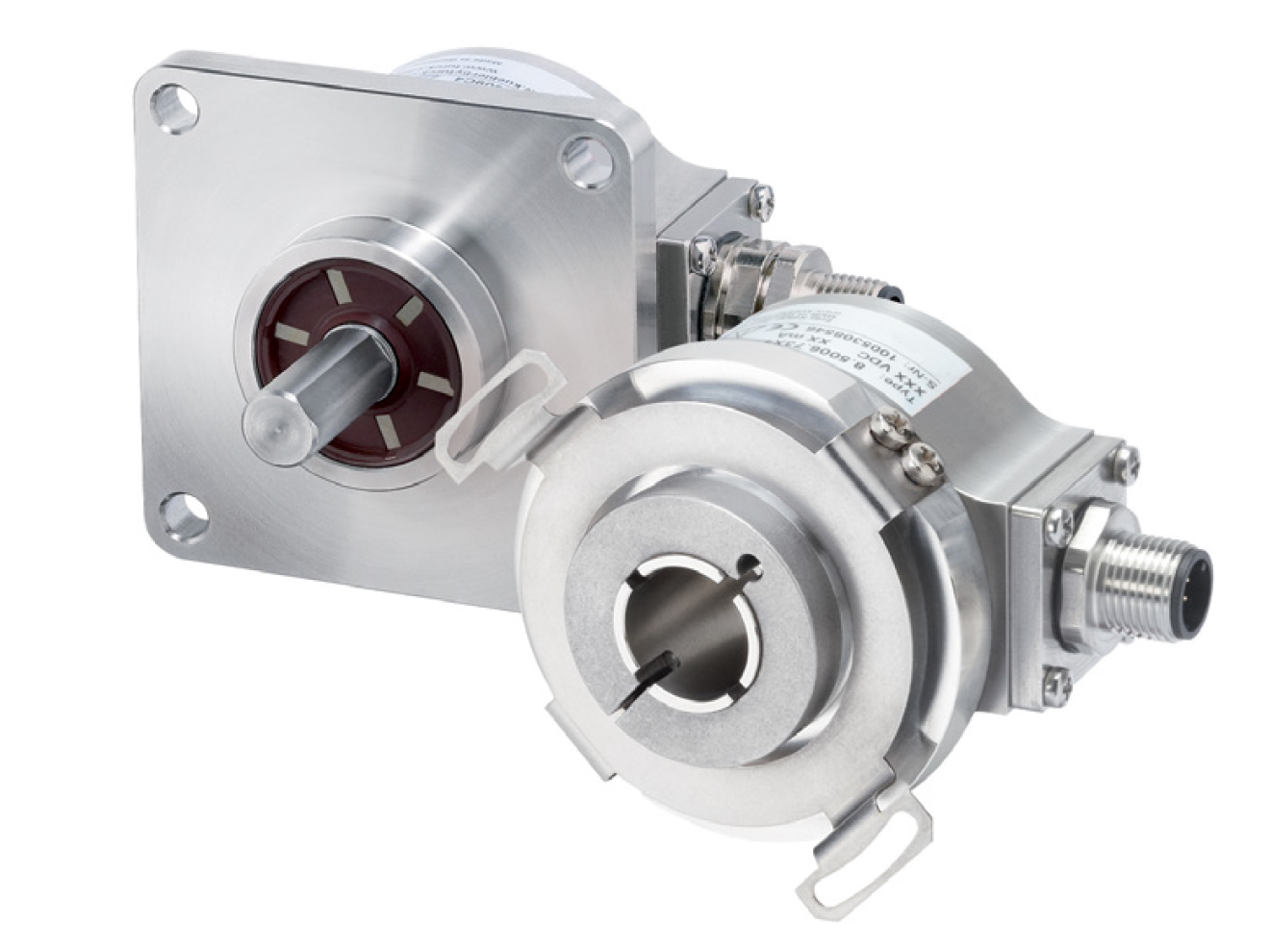

TURCK RI-65 / RI-96 Series Incremental Encoder
Rugged solid or hollow shaft incremental encoder for outdoor applications, 100 to 5000 ppr, magnetic field proof and wide operating temperature range.
Overview
Features
- Design principle:
- Solid shaft
- Hollow shaft
- Diameter: Ø 2 in
- Pulse rate: 100 to 5000 ppr
- Pulse frequency: 300 kHz max
- Speed: 6000 rpm max
- Output:
- Push-Pull w/ inverted signals
- RS422 w/ inverted signals
- Supply voltage:
- 5 VDC max
- 5 to 30 VDC
- 10 to 30 VDC
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Materials:
- Housing/flange/shaft: 1.4305 (303) stainless steel
- Connector: stainless steel
- Seals: viton
- Short circuit protection
- Reverse polarity protection
- Shock resistance: 250 g (2500 m/s2), 6 ms
- Vibration resistance: 10 g (100 m/s2), 10 to 2000 Hz
- Protective rating: IP66/67
Description
The TURCK RI-65 / RI-96 Series Incremental Encoder is a 2 in diameter position sensing system, with both solid (RI-65) and hollow shaft (RI-96) configurations for integration flexibility. Pulse rates are available from 100 to 5000 ppr, with 5 VDC, 5 to 30 VDC, and 10 to 30 VDC operating voltages, providing high scan rates alongside low power consumption. The stainless steel shaft features IP66/IP67 ingress protection. All units are magnetic field proof, with short-circuit and reverse polarity protection. Operating temperatures range from -40 to 85°C.
