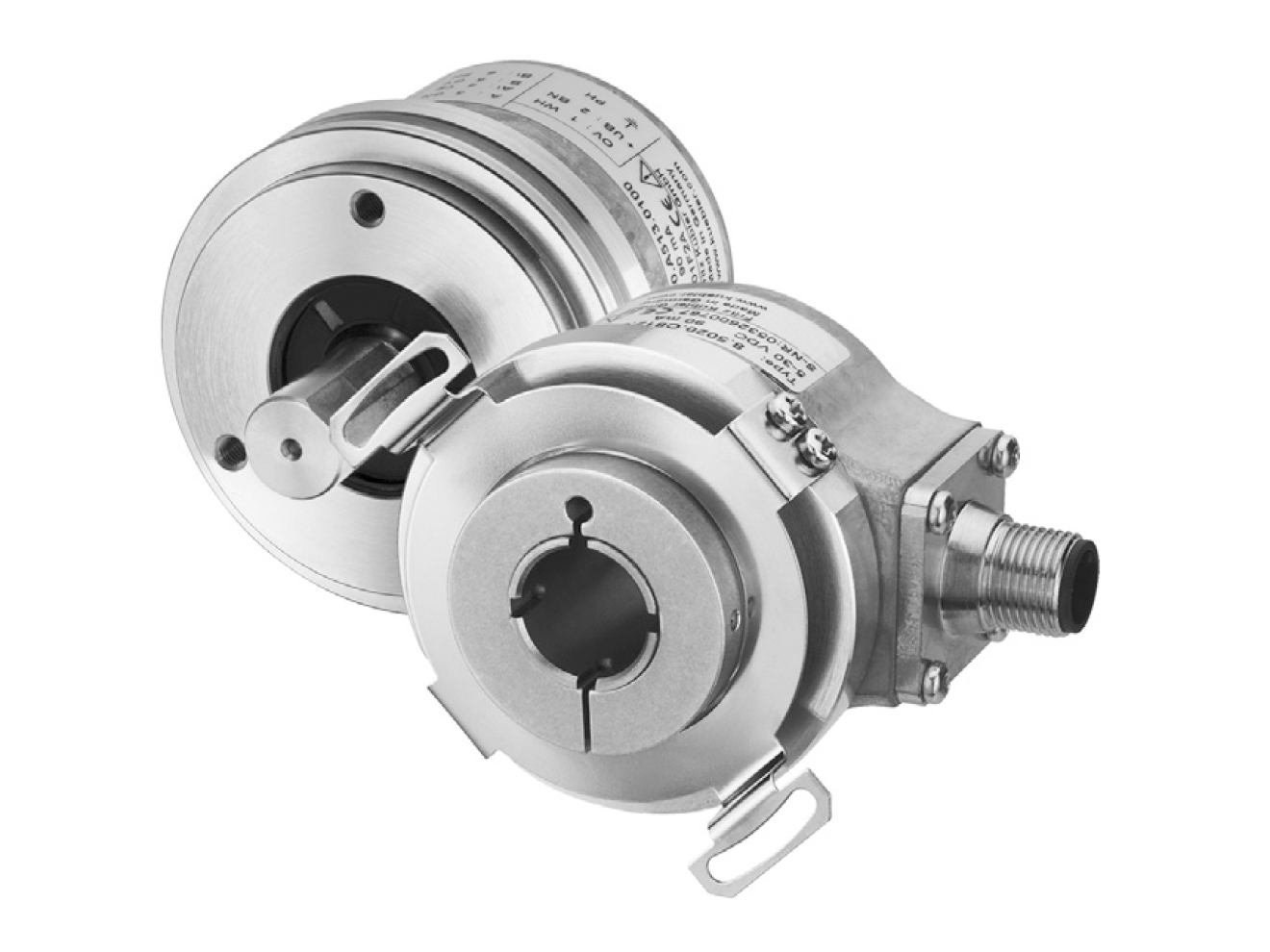

TURCK RI-10 / RI-12 Series Incremental Encoder

Small model solid or hollow shaft incremental encoder, 1 to 5000 ppr, magnetic field proof with wide operating temperature range.

Starting at $358.80
This model has 308 variants.
Manufactured
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Design principle:
    • Solid shaft
    • Hollow shaft
  • Diameter: Ø 2 in
  • Pulse rate: 1 to 5000 ppr
  • Pulse frequency: 300 kHz max
  • Speed:
    • Solid shaft: 12000 rpm max
    • Hollow shaft: 6000 rpm max
  • Output:
    • Push-Pull
    • Push-Pull w/ inverted signals
    • RS422 w/ inverted signals
    • Open collector
  • Supply voltage:
    • 5 VDC max
    • 5 to 30 VDC
    • 10 to 30 VDC
  • Operating temperature: -40 to 85°C (-40 to 185°F)
  • Material:
    • Housing: die-cast
    • Hub, flanges, disc tables: stainless steel
    • Shaft seal/O-ring: butyl rubber
  • Short circuit protection
  • Reverse polarity protection
  • Shock resistance: 250 g (2500 m/s2), 6 ms
  • Vibration resistance: 10 g (100 m/s2), 10 to 2000 Hz
  • Protective rating:
    • Shaft:
      • IP65
      • IP67

The TURCK RI-10 / RI-12 Series Incremental Encoder is a 2 x 2 in position sensing system, with both solid (RI-10) and hollow shaft (RI-12) configurations for integration flexibility. Pulse rates are available from 1 to 5000 ppr, with 5 VDC, 5 to 30 VDC, and 10 to 30 VDC operating voltages, providing high scan rates alongside low power consumption. The stainless steel shaft is rated for IP65 or IP67 ingress protection. All units are magnetic field proof, with short-circuit and reverse polarity protection. Operating temperatures range from -40 to 85°C. A seawater resistant variant, certified via salt-spray test IEC 68-2-11 ≥ 672 hours is available, contact a TMMI engineer for details.

Replacement Accessories

TURCK Encoder Series Flex Mount
TURCK Encoder Series Flex Mount

Flex mounts for use with RI (incremental), RS (singleturn), and RM (multiturn) series Encoders.

Starting at $29.30
TURCK Encoder Series Torque Stop
TURCK Encoder Series Torque Stop

Torque stop for use with RI (incremental), RS (singleturn), and RM (multiturn) series Encoders.

Starting at $8.00

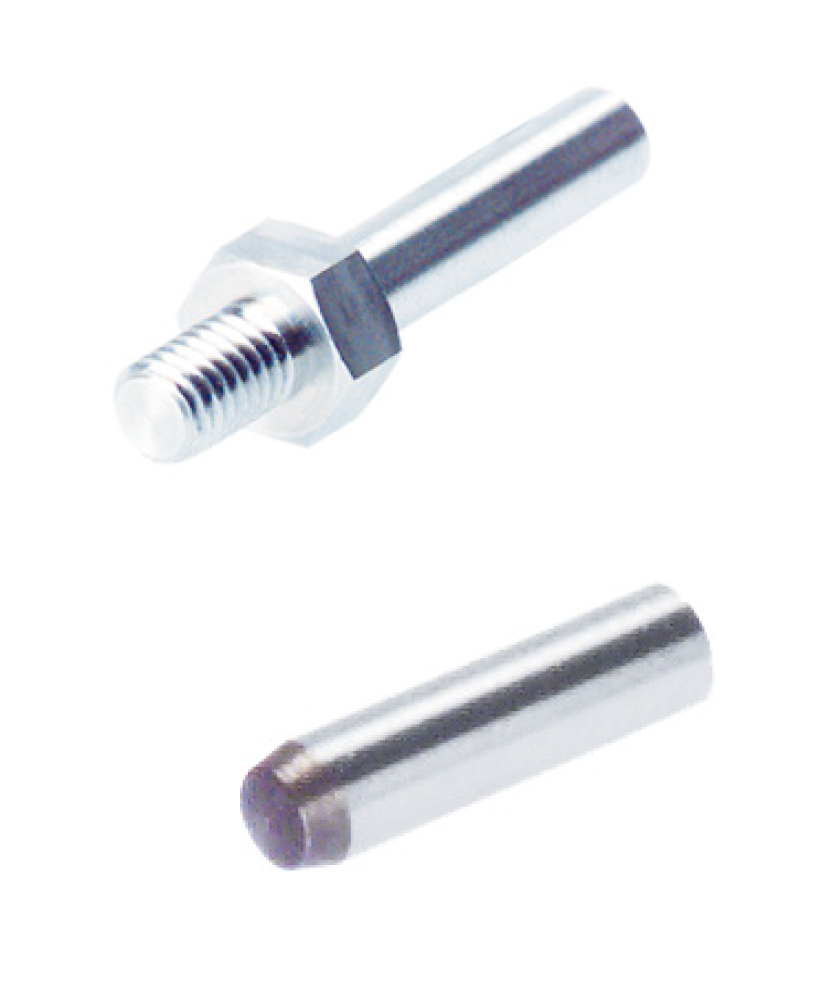

TURCK Encoder Series Torque Pin
TURCK Encoder Series Torque Pin

Torque pin for use with RI-12 and RI-43 (incremental) series encoders.

Starting at $16.70

Accessories

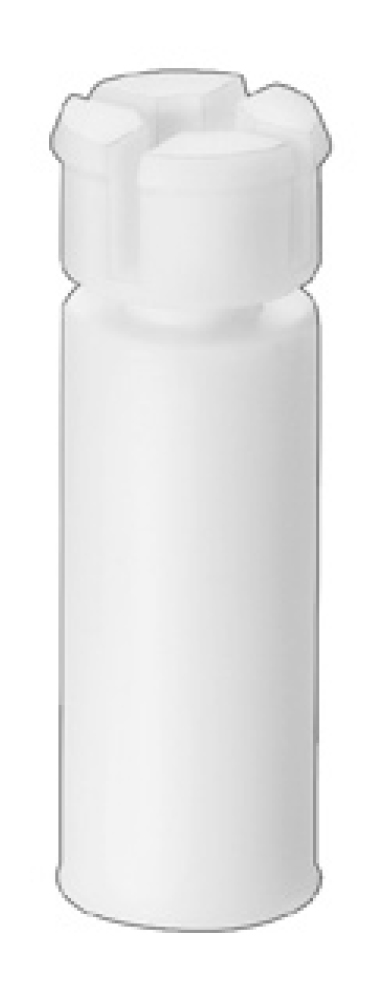

TURCK RI-12 Series Isolation Insert
