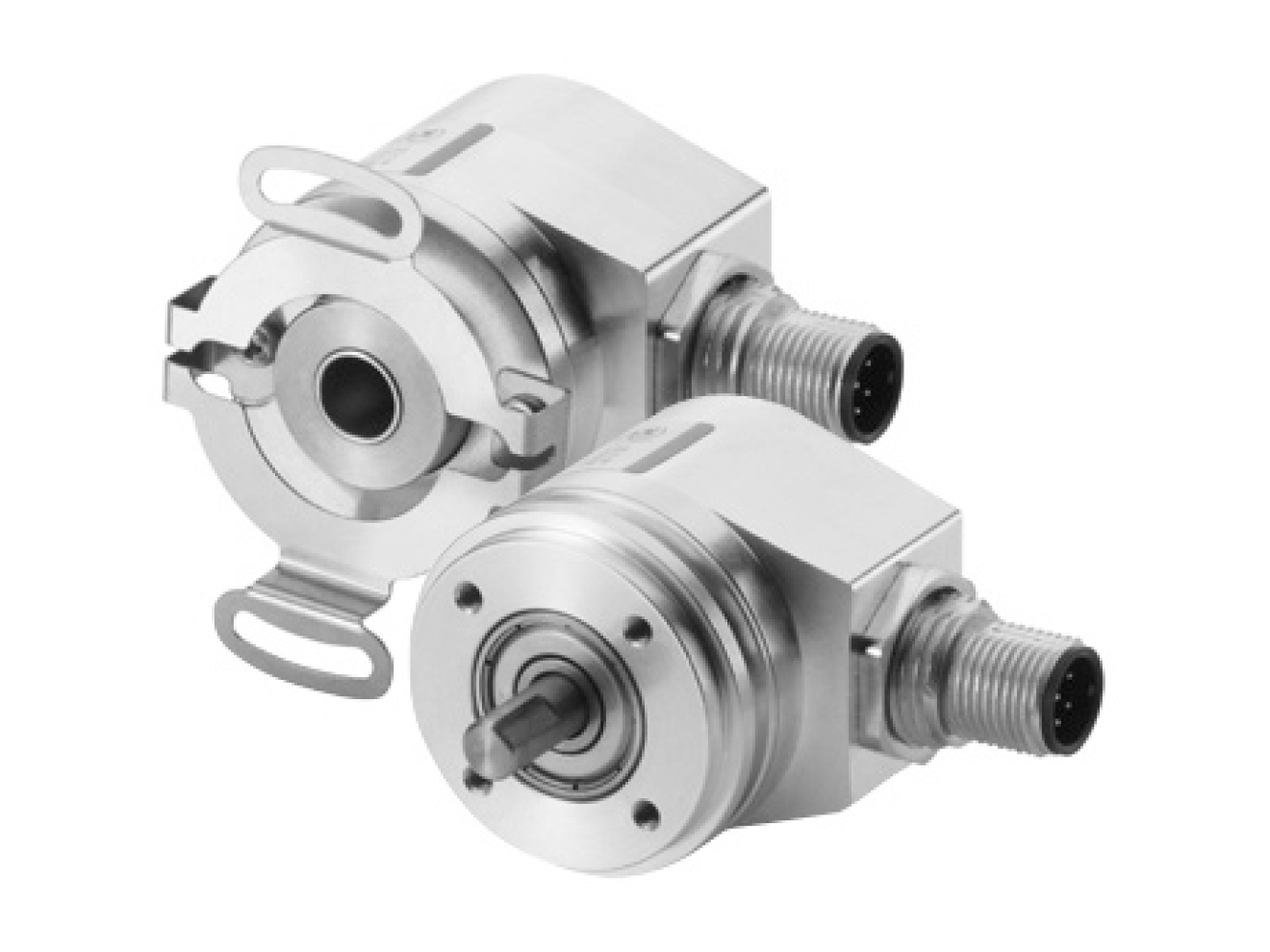

TURCK RI-04 / RI-05 Compact Series Incremental Encoder

Name: TURCK RI-04 / RI-05 Compact Series Incremental Encoder
Brand: TURCK
Price: 488.0 USD
Availability: BackOrder

Compact solid or hollow shaft incremental encoder, up to 2048 ppr, with high EMC standards and wide operating temperature range.

Starting at $488.00

Manufactured

By TURCK

Availability

Call for availability

Product Specs

Features

Design principle:
- Solid shaft
- Hollow shaft
Diameter: 36 mm
Pulse rate:
- 100 to 2048 ppr
Pulse frequency: 200 kHz max
- 300 kHz w/ RS422 variants
Speed:
- Solid shaft: 12000 rpm max
- Hollow shaft: 6000 rpm max
Output:
- Push-Pull
- Push-Pull w/ inverted signals
- RS422 w/ inverted signals
Supply voltage:
- 5 VDC max
- 5 to 18 VDC
- 8 to 30 VDC
Operating temperature: -20 to 85°C (-4 to 185°F)
Materials:
- Housing: chromated aluminum
- Shaft: stainless steel
- Hollow shaft: brass
- Cable: PVC
Short circuit protection
Reverse polarity protection
Shock resistance: 100 g (1000 m/s2), 6 ms
Vibration resistance: 10 g (100 m/s2), 55 to 2000 Hz
Protective rating:
- Shaft: IP50
- Housing: IP65

The TURCK RI-04 / RI-05 Mini Series Incremental Encoder is a compactly designed position sensing system with a 36 mm diameter, with both solid (RI-04) and hollow shaft (RI-05) configurations for integration flexibility. Pulse rates are available from 100 to 2048 ppr, with 5, 5 to 18, or 8 to 30 VDC operating voltages, maintaining a high scan rate despite low power consumption. The stainless steel shaft is rated for IP50 ingress protection, the durable brass housing IP65. All units are magnetic field proof, with short-circuit and reverse polarity protection. Operating temperatures range from -20 to 85°C.
