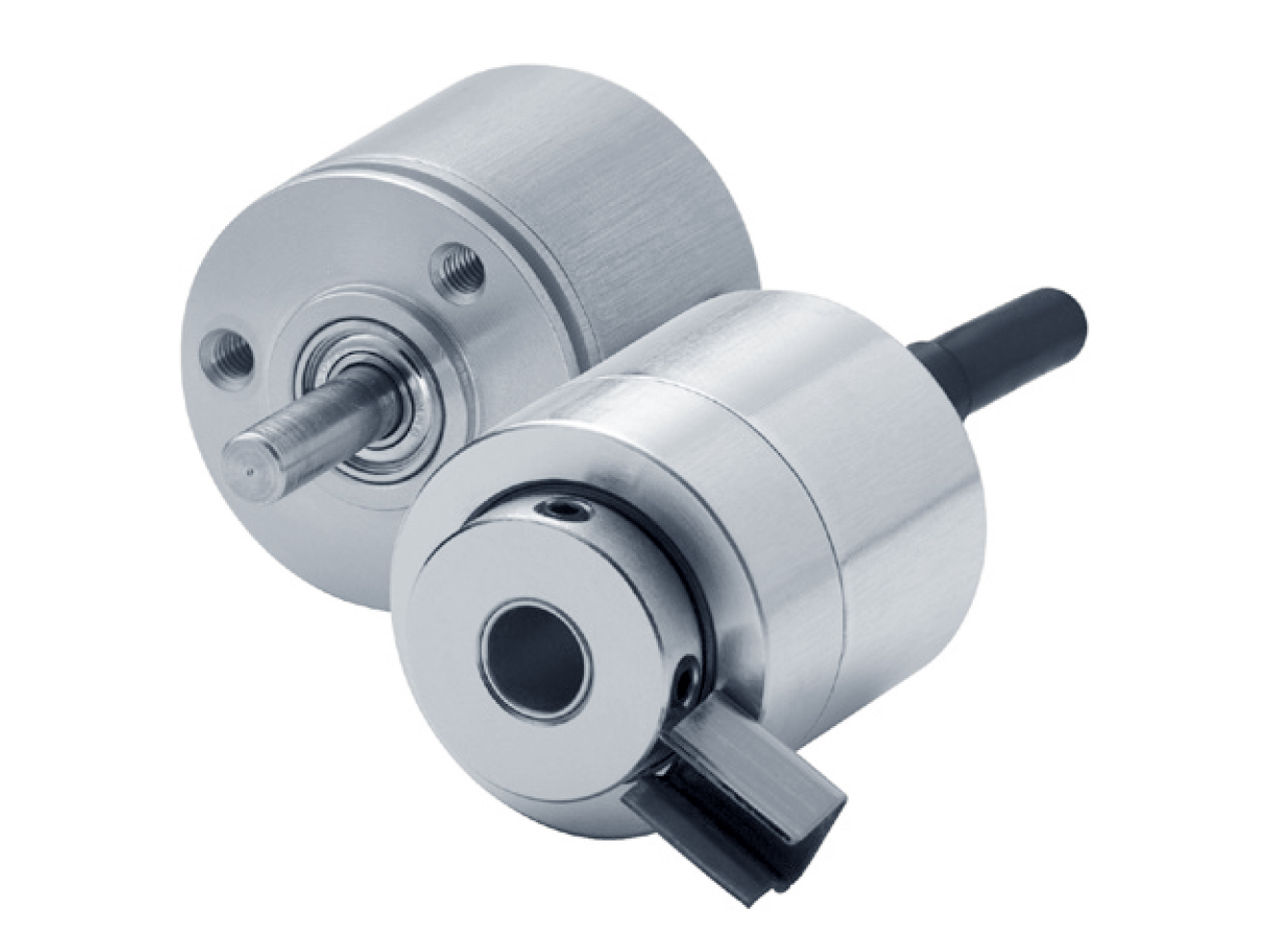

TURCK RI-01 / RI-02 Mini Series Incremental Encoder
Miniature solid or hollow shaft incremental encoder, up to 1024 ppr, with high EMC standards and wide operating temperature range.
Overview
Features
- Design principle:
- Solid shaft
- Hollow shaft
- Diameter: 24 mm
- Pulse rate:
- 10 to 1024 ppr
- Pulse frequency: 160 kHz max
- Speed: 12000 rpm max
- Output:
- Push-Pull
- Push-Pull w/ inverted signals
- Supply voltage:
- 5 to 24 VDC
- 8 to 30 VDC
- Operating temperature: -20 to 85°C (-4 to 185°F)
- Materials:
- Shaft: stainless steel
- Hollow shaft: brass
- Short circuit protection
- Reverse polarity protection
- Shock resistance: 100 g (1000 m/s2), 6 ms
- Vibration resistance: 10 g (100 m/s2), 55 to 2000 Hz
- Protective rating:
- Shaft: IP50
- Housing: IP65
Description
The TURCK RI-01 / RI-02 Mini Series Incremental Encoder is a highly compact position sensing system with a 24 mm diameter, with both solid (RI-01) and hollow shaft (RI-02) configurations for integration flexibility. Pulse rates are available from 10 to 1024 ppr, with 5 to 24, or 8 to 30 VDC voltage requirements, maintaining a high scan rate despite low power consumption. The stainless steel shaft is rated for IP50 ingress protection, the durable brass housing IP65. All units are magnetic field proof, with short-circuit and reverse polarity protection. Operating temperatures range from -20 to 85°C.
