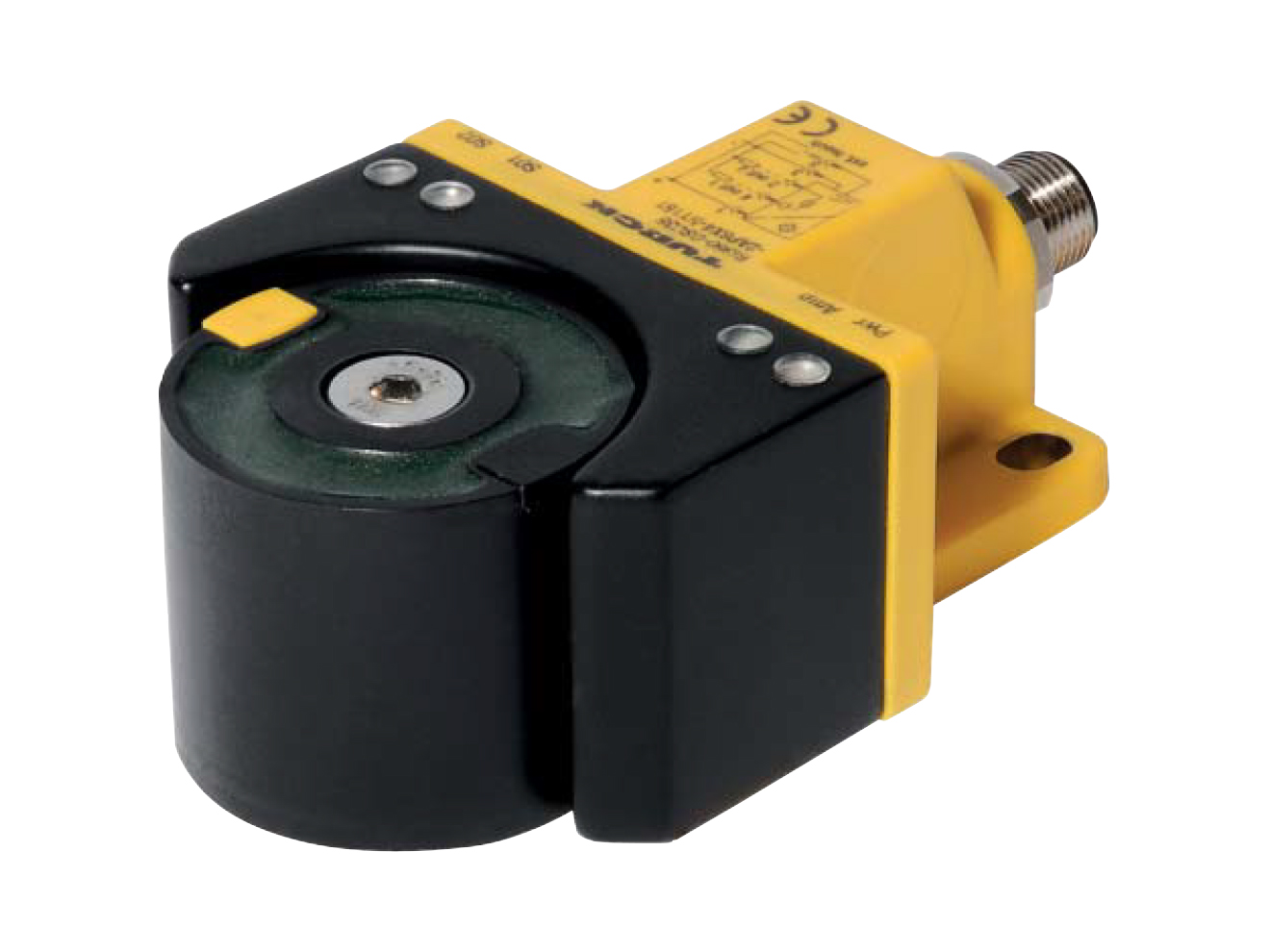

TURCK DSU35 Series Rotary Position Sensor
Rectangular rotary position sensor with 0 to 360° range, suited to chemical and petrochemical applications. Analog current and voltage outputs, with hazardous area certification available.
Overview
Features
- Measuring range: 0 to 360°
- Nominal distance: 1 mm
- Resolution: 12 bit (≤ 0.09°)
- Repeat accuracy: ≤ 0.025% of full scale
- Ambient temperature: -25 to 75°C (-13 to +167°F)
- ATEX-rated: -25 to 70°C (-13 to 158°F)
- Operating voltage: 15 to 30 VDC
- ATEX-rated: 14 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output:
- 0 to 10 V
- 4 to 20 mA
- Sampling rate: 500 Hz
- Housing: rectangular, 71 x 60 x 35.4 mm
- Material:
- Housing: plastic, PP-GF30
- Connection: M12, 7/8 in -20UNF, terminal chamber
- 2x LEDs (green status, yellow error indication)
- Vibration resistance: 55 Hz (1 mm)
- Shock resistance: 30 g (11 ms)
- Continuous Shock resistance: 40 g, 6 ms 1/2 sine, 4000x each, 3 axes
- Protection rating: IP67
- ATEX (Zone 1 & 21), IECEx available with EXI variant
What's in the Box
- DSU35 Series Rotary Position Sensor

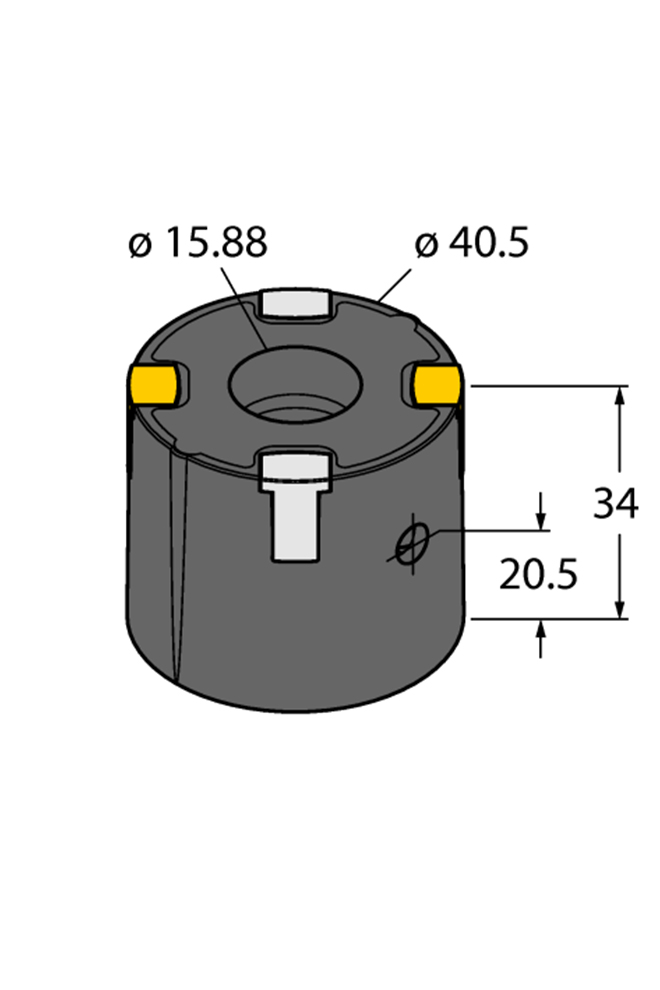

- P1/4-Ri-DSU35 positioning element
Description
The TURCK DSU35 Series Rotary Position Sensor offers a 360° measuring range with 12 bit resolution. These sensors ensure high precision measurement, with 0.09° repeatability, with analog outputs 0 to 10 V and 4 to 20 mA. The DSU35 Series design is adapted to the shape of the actuator puck, optimizing protection, and minimizing required installation space. All units offer a high resistance against chemicals, with ATEX-rated variants (EXI) are available for application environments where combustible dust, powder or gases are found. Operating temperatures range from -25 to 75°C (-25 to 70°C with EXI variant), with all units featuring very high interference immunity.
