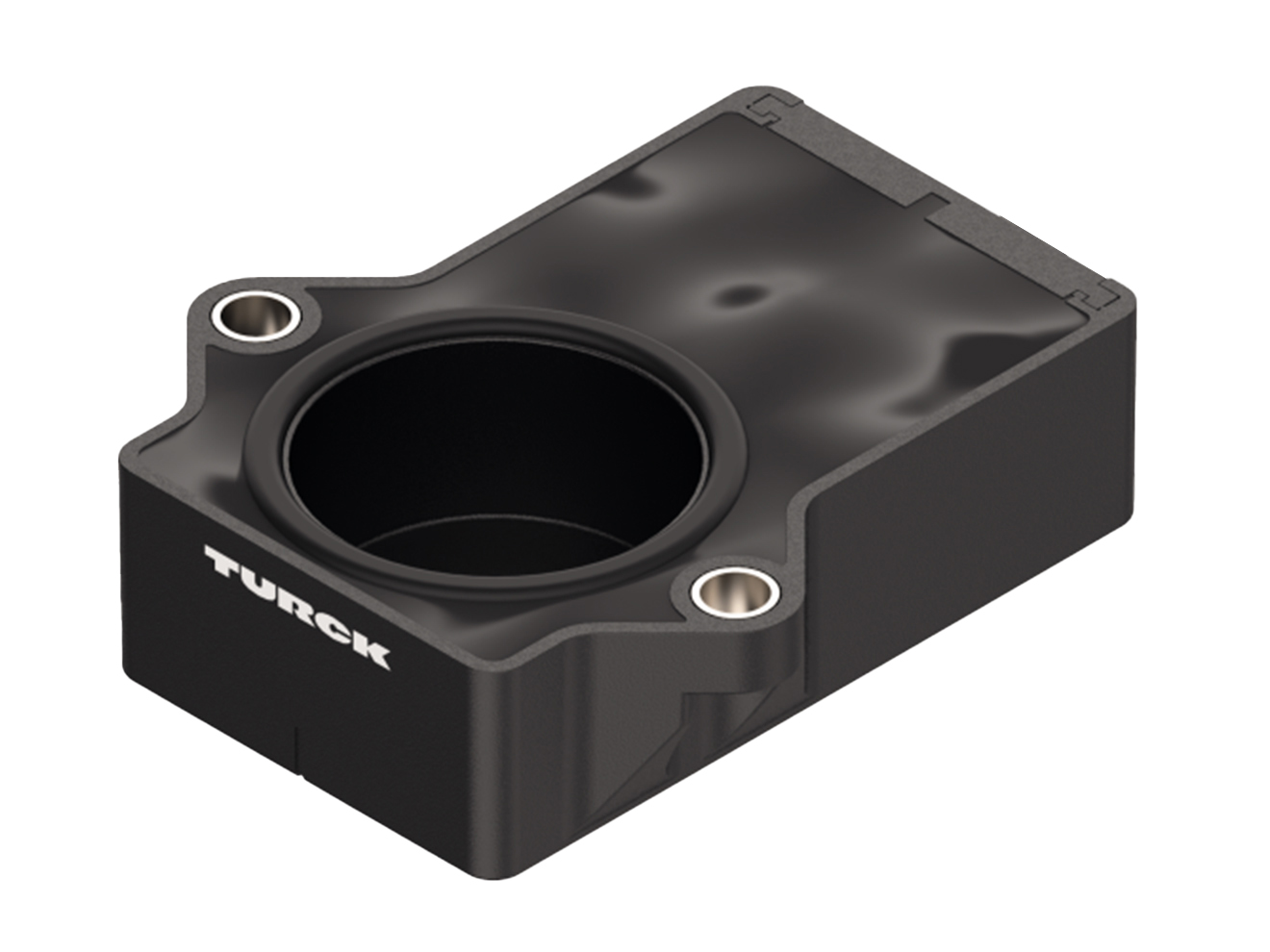

TURCK QR20 Series Rotary Position Sensor

Name: TURCK QR20 Series Rotary Position Sensor
Brand: TURCK
Price: 190.6 USD
Availability: BackOrder

Rectangular rotary position sensor with 0 to 360° range, ideal for use with mobile machinery. Analog current, voltage outputs and SAE J1939 protocol available. IP68/IP69K rating.

Starting at $190.60

Manufactured

By TURCK

Availability

Call for availability

Product Manual Product Specs (2 Files)

Features

Measuring range:
- 20°
- 40°
- 60°
- 90°
- 120°
- 240°
- 360°
Nominal distance: 1 mm
Resolution: 12 bit (≤ 0.09°)
Repeat accuracy: ≤0.09°
Linearity deviation: ≤1.08°
Ambient temperature: -40 to 85°C (-40 to 185°F)
Operating voltage:
- 15 to 30 VDC
- 8 to 30 VDC
Short-circuit protection
Wire breakage / reverse polarity protection
Output:
- 0.5 to 4.5 V
- 4 to 20 mA
Sampling rate: 800 Hz
Housing: rectangular, 71.3 x 64 x 20 mm
Material:
- Housing: plastic, Ultem
Connection: cable/cable with connector
- M12
- Deutsch
Green LED status indication
Vibration resistance: 20 g, 10 to 3000 Hz, 50 cycles, 3 axes
Shock resistance: 100 g, 11 ms 1/2 sine, 3x each, 3 axes
Continuous Shock resistance: 40 g, 6 ms 1/2 sine, 4000x each, 3 axes
Salt spray test: severity degree 5 (4 test cycles)
Protection rating: IP68/IP69K

What's in the Box

QR20 Series Rotary Position Sensor
P1/2-Ri-QR20 positioning element

The TURCK QR20 Series Rotary Position Sensor offers flexible measuring ranges up to 360°, in a highly compact design with 12 bit resolution. These sensors ensure high precision measurement, with 0.09° repeatability and high linearity, with deviation within 1.08°, making this product line well suited for applications involving mobile machinery. Standard units include analog outputs 4 to 20 mA, with operating voltages of 15 to 30 VDC, or 0.5 to 4.5 V and SAE J1939 outputs with operating voltages of 8 to 30 VDC.

All QR20 Series units offer operating temperatures from -40 to 85°C. The IP68/IP69K protection exceeds the e1/E1 requirements and comes, while preserving installation space via the compact 71 x 64 x 20 mm dimensions. The contactless resonator measuring principle is emulated from its larger sibling series, the QR24, preserving accuracy in a miniature design. The standard-issued positioning element can be positioned above the sensor, further increasing mounting flexibility, as well as dust and moisture protection. The QR20 Series has high interference immunity and is protected from line-conducted interference, the so-called load dump. Salt spray, rapid temperature changes, diesel, kerosene or vibrations have no impact on device operations.
