TURCK QR14 Analog Series Rotary Position Sensor
Rectangular rotary position sensor with 0 to 360° range. Analog current and voltage outputs available, with wide operating temperature range. IP68/IP69K rating.
Overview
Features
- Measuring range: 0 to 360°
- Nominal distance: 1.5 mm
- Resolution: 12 bit (≤ 0.09°)
- Repeat accuracy: ≤ 0.025% of full scale
- Linearity deviation: ≤ 0.3% full scale
- Ambient temperature: -25 to 70°C
- -40 to 70°C (S97 option)
- Operating voltage:
- IU5: 15 to 30 VDC
- U4: 8 to 30 VDC
- Short-circuit protection
- Wire breakage / reverse polarity protection
- Output:
- 0 to 10 V
- 0.5 to 4.5 V
- 4 to 20 mA
- Sampling rate: 800 Hz

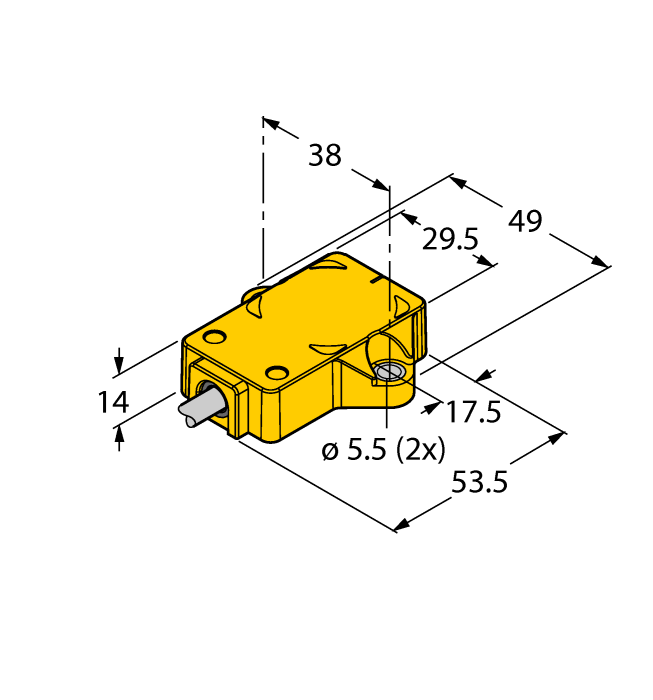

- Housing: rectangular, 53.5 x 49 x 14 mm
- Material:
- Housing: plastic, PBT-GF30-V0
- Connection: cable/cable with connector, M12 x 1
- 2x LEDs (green status indication)
- Vibration resistance: 20 g, 10 to 3000 Hz, 50 cycles, 3 axes
- Shock resistance: 100 g, 11 ms 1/2 sine, 3x each, 3 axes
- Continuous Shock resistance: 40 g, 6 ms 1/2 sine, 4000x each, 3 axes
- Protection rating: IP68/IP69K
What's in the Box
- QR14 Analog Series Rotary Position Sensor

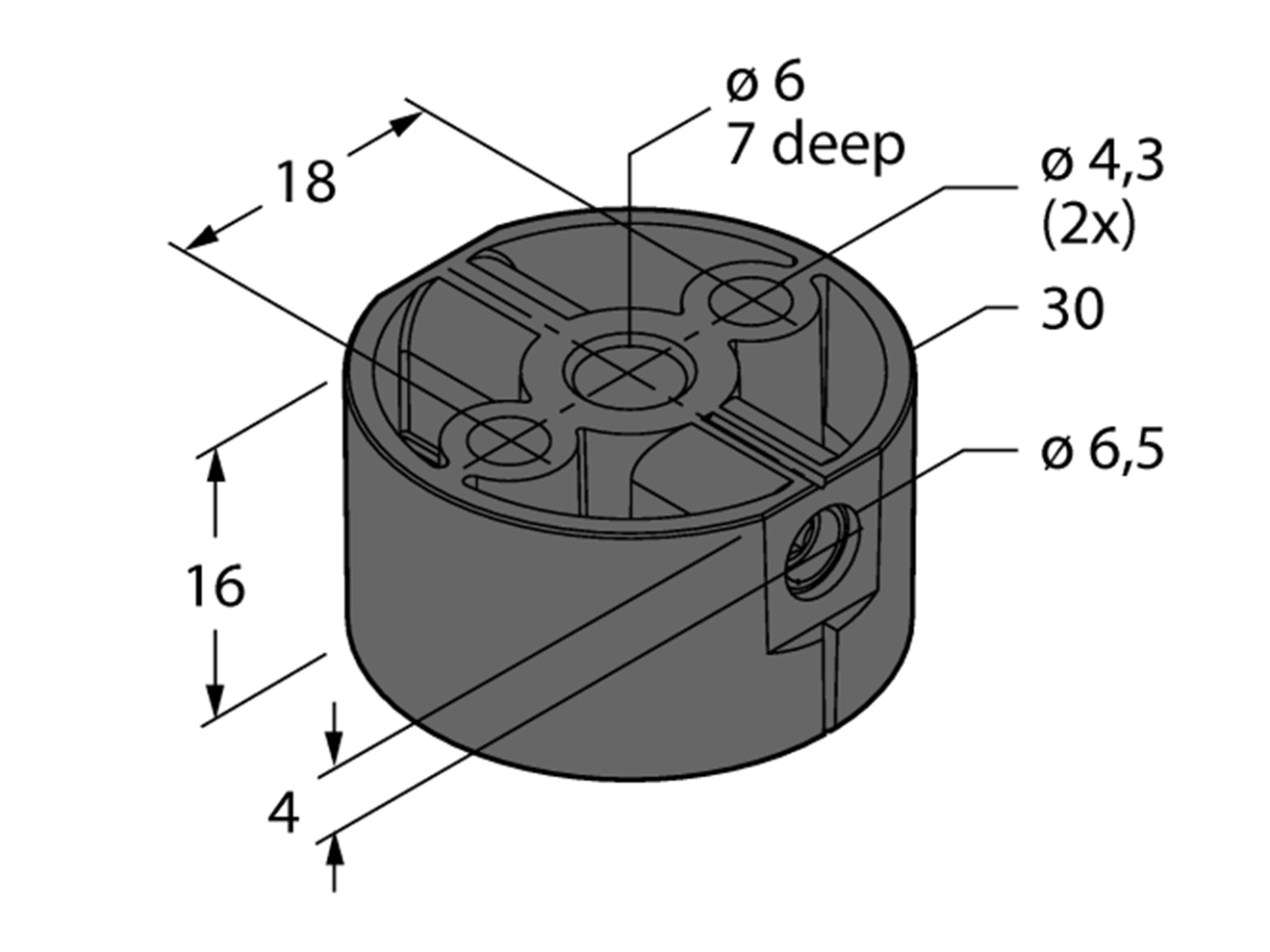

- P1/2-Ri-QR14 positioning element
Description
The TURCK QR14 Analog Series Rotary Position Sensor offers a 360° measuring range in a highly compact design and 12 bit resolution. These sensors ensure high precision measurement, with 0.09° repeatability and high linearity, with deviation within 0.3% of full scale. Standard units include analog outputs 0 to 10 V and 4 to 20 mA, with operating voltages of 15 to 30 VDC, or 0.5 to 4.5 V output with operating voltages of 8 to 30 VDC. Operating temperatures range from -25 to 70 °C, or -40 to 70°C in select /S97 variants, with all units featuring very high interference immunity.
