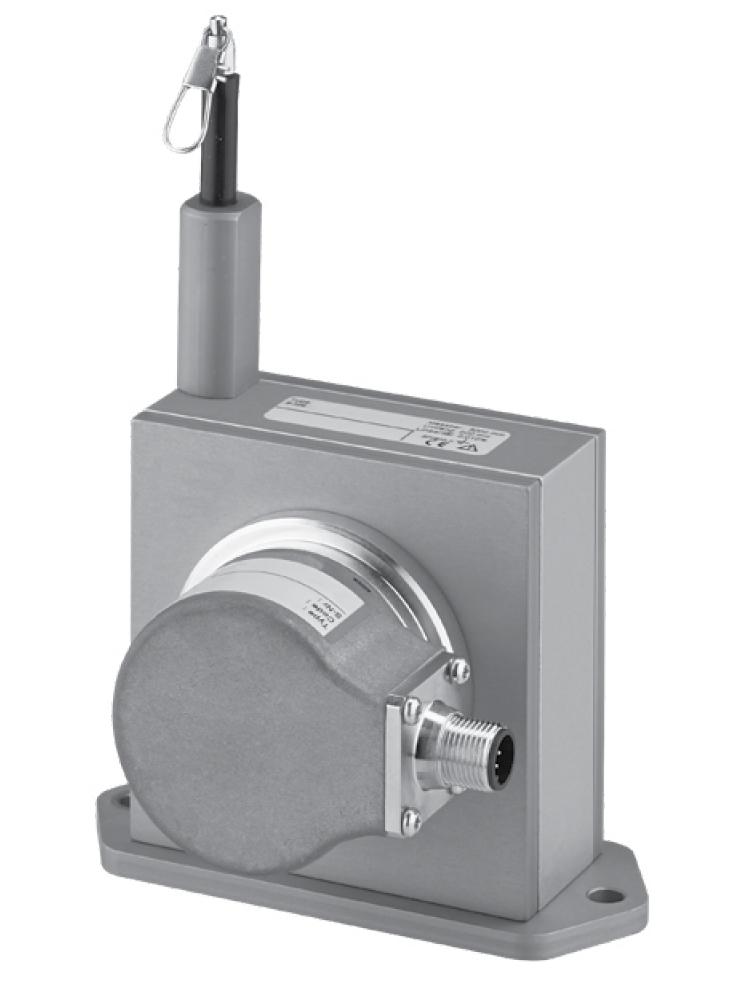

TURCK DW110 Analog Series Draw Wire Position Sensor

Draw wire sensor with analog, current and voltage outputs, up to 10 m/s max speed, with measuring ranges up to 3000 mm.

Starting at $1,467.60
This model has 7 variants.
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Output:
    • 4 to 20 mA
    • 0 to 10 V
  • Measuring range: 1000 to 3000 mm
  • Max speed: 10 m/s (32.8 ft/s)
  • Linearity: ± 0.1 to 0.15%
  • Extensions force:
    • Fmin: up to 6.9 N (1.55 lbs)
    • Fmax: up to 9.8 N (2.2 lbs)
  • Supply voltage: 12 to 30 VDC
  • Operating temperature: -40 to 85°C (-14 to 185°F)
  • Materials:
    • Housing: titanium-anodized aluminum
    • Wire: stainless steel Ø 0.5 mm
  • Reverse polarity protection
  • RoHS compliant

The TURCK DW110 Analog Series Draw Wire Position Sensor is designed for movement tracking applications, with high travel speeds up to 10 m/s and acceleration speeds up to 140 m/s2. Measuring lengths are available from 1000 to 3000 mm, with 4 to 20 mA or 0 to 10 V outputs. The durable anodized aluminum housing offers reliable protection and operation, with a wide operating temperature range up to -40 to 85°C.
